VICO
C-Mount High Resolution Telecentric Lenses
WWK022-220-111V2
WWK022-220-111V2

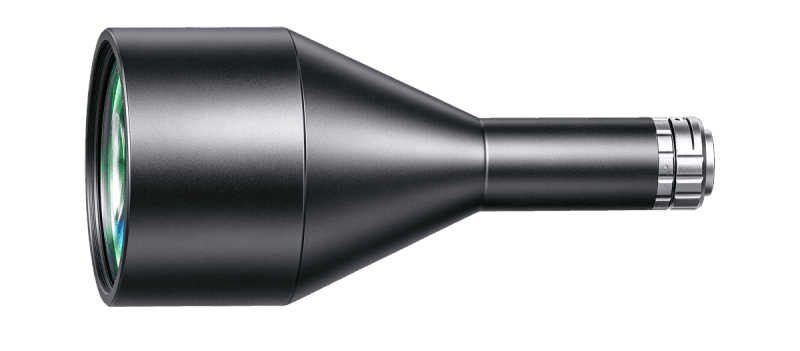

WWK022-220-111V2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.22 |
|---|---|
| Working Distance(mm) | 220 |
| Max Sensor Size | 18.0(1.1") |
| F-Number | 8.0 |
| Telecentricity(°) | <0.15 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | 110 |
| Object Resolution(μm) | 24.3 |
| Depth of Field(mm) | ±6.6@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 232.9 |
| NA | 0.0138 |
|---|---|
| Filter Thread | M99 P0.75 |
| Coaxial Light Support | No |
| Iris | No |
