C-Mount High Resolution Telecentric Lenses
WWK022-200-118

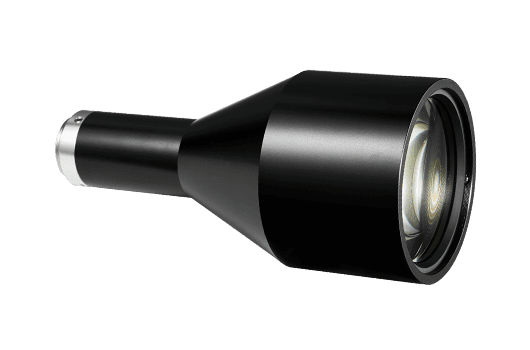

WWK022-200-118 Object-Side Telecentric Lens
COOLENS WWK022-200-118 object-side telecentric lens — low distortion and optional coaxial lighting for wafer, glass and display AOI.
Key Specifications
Optical Specifications
| Magnification | 0.22 |
|---|---|
| Working Distance(mm) | 200±3 |
| Max Sensor Size | 9.0(1/1.8") |
| F-Number | 8 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >95 |
| Object Resolution(μm) | 24 |
| Depth of Field(mm) | ±6.6@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 150.0 |
| NA | 0.014 |
|---|---|
| Filter Thread | M65 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
