C-Mount High Resolution Telecentric Lenses
WWK021-240-120
WWK021-240-120

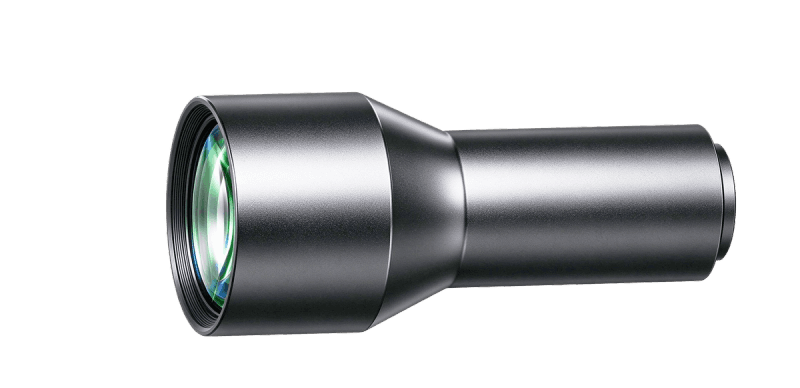

WWK021-240-120 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.21 |
|---|---|
| Working Distance(mm) | 240 |
| Max Sensor Size | 8(1/2") |
| F-Number | 10 |
| Telecentricity(°) | <1 |
| Distortion(%) | <0.2 |
| MTF30 (Image-side)(lp/mm) | >90 |
| Object Resolution(μm) | 6.7 |
| Depth of Field(mm) | ±9.1@F10 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 112.0 |
| NA | 0.0499 |
|---|---|
| Filter Thread | M48x0.5 |
| Coaxial Light Support | No |
| Iris | No |
