C-Mount High Resolution Telecentric Lenses
WWK020-242-110
WWK020-242-110

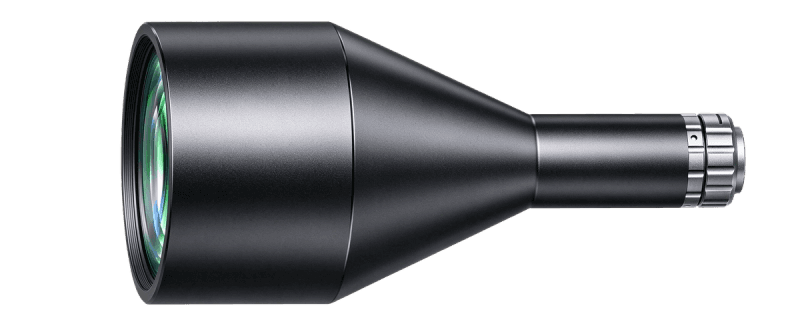

WWK020-242-110 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.2 |
|---|---|
| Working Distance(mm) | 242 |
| Max Sensor Size | 16.0(1") |
| F-Number | 8.0 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.01 |
| MTF30 (Image-side)(lp/mm) | 85 |
| Depth of Field(mm) | ±16@F8 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 223.8 |
| NA | 0.01251 |
|---|---|
| Filter Thread | M99 P0.75 |
| Coaxial Light Support | No |
| Iris | No |
