Dual-Field Optical Systems

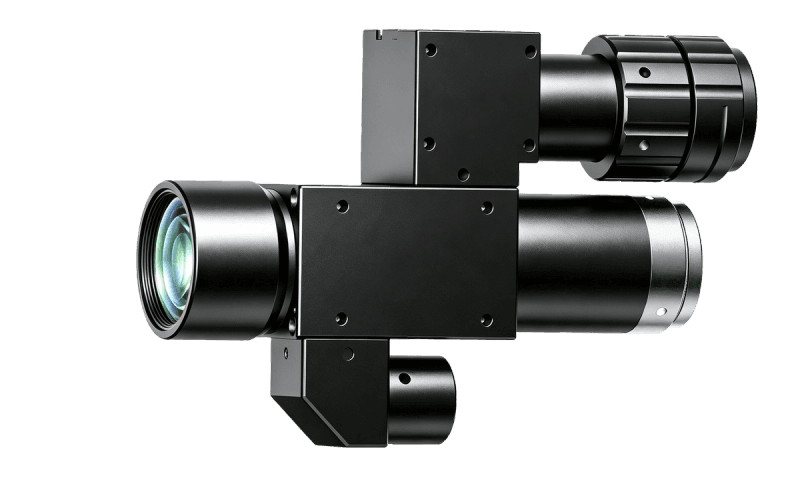

PHDV10-50-108C
PHDV10-50-108C
PHDV10-50-108C industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1, 5 |
|---|---|
| Working Distance(mm) | 108, 108 |
| Max Sensor Size | 11(2/3") , 11(2/3") |
| F-Number | 9, 24 |
| Telecentricity(°) | 0.005, 0.003 |
| Distortion(%) | 0.11, 0.07 |
| MTF30 (Image-side)(lp/mm) | 84, 33 |
| Object Resolution(μm) | 6.0, 3.2 |
| Depth of Field(mm) | 0.72, 0.08 |
Mechanical Specifications
| Camera Mount | C, C |
|---|---|
| Total Length(mm) | 110.1 |
| Object Field of View(Φmm) | 11, 2.2 |
|---|---|
| NA | 0.055556, 0.104167 |
| Coaxial Light Support | No |
| Iris | No |
