VICO
Dual-Field Optical Systems
PHDV10-40-108C
PHDV10-40-108C

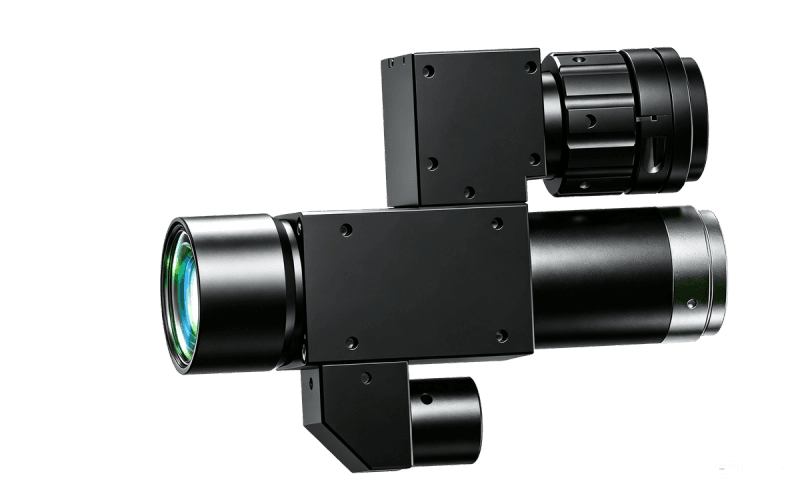

PHDV10-40-108C industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.00, 4.00 |
|---|---|
| Working Distance(mm) | 108 |
| Max Sensor Size | 11(2/3") ,11(2/3") |
| F-Number | 9.1, 19.1 |
| Distortion(%) | 0.17, 0.1 |
| MTF30 (Image-side)(lp/mm) | 82, 40 |
| Object Resolution(μm) | 6.1, 3.4 |
| Depth of Field(mm) | 0.7, 0.1 |
Mechanical Specifications
| Camera Mount | C; C |
|---|
| Object Field of View(Φmm) | 11, 11 |
|---|---|
| NA | 0.055, 0.1 |
| Coaxial Light Support | No |
| Iris | No |
| Coaxial Type | Coaxial |
