VICO
Dual-Field Optical Systems

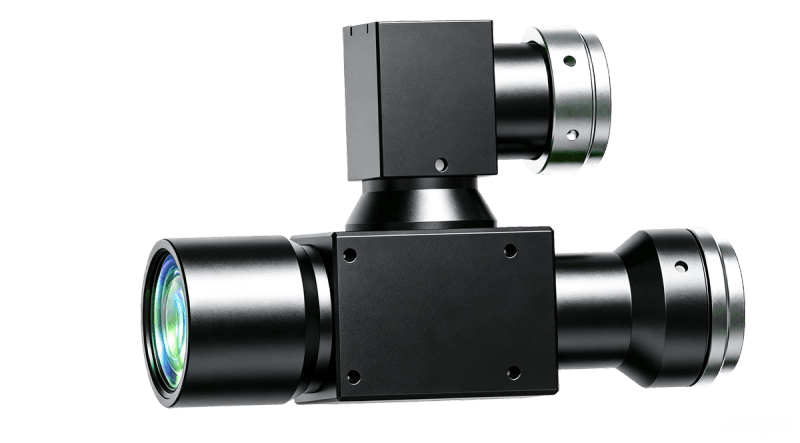

PHDV10-30-108
PHDV10-30-108
PHDV10-30-108 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1, 3 |
|---|---|
| Working Distance(mm) | 108, 108 |
| Max Sensor Size | 11(2/3"), 11(2/3") |
| F-Number | 7.1, 15 |
| Telecentricity(°) | 0.05, 0.01 |
| Distortion(%) | 0.13, 0.07 |
| MTF30 (Image-side)(lp/mm) | 90.5, 51.4 |
| Object Resolution(μm) | 5.0706, 3.5841 |
| Depth of Field(mm) | 0.6, 0.1 |
Mechanical Specifications
| Camera Mount | C, C |
|---|---|
| Total Length(mm) | 108.3 |
| Object Field of View(Φmm) | 11.1, 3.7 |
|---|---|
| NA | 0.0707, 0.1 |
| Filter Thread | M30.0 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
