Flat Line Scan Telecentric Lenses

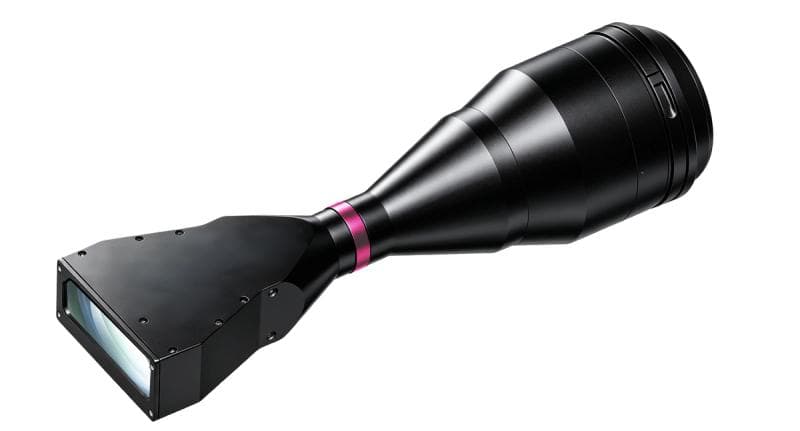

LTCM16K-72-M72-AL
LTCM16K-72-M72-AL
LTCM16K-72-M72-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.819 |
|---|---|
| Working Distance(mm) | 176 |
| Max Sensor Size | 59 |
| F-Number | 17.34 |
| Telecentricity(°) | 0.07 |
| Distortion(%) | 0.042 |
| MTF30 (Image-side)(lp/mm) | >45 |
| Depth of Field(mm) | ±1@F17.34 |
Mechanical Specifications
| Camera Mount | M72 |
|---|---|
| Total Length(mm) | 352.4 |
| Object Field of View(Φmm) | 72 |
|---|---|
| NA | 0.0236 |
| Length of I/O(mm) | 540.4 |
| Coaxial Light Support | No |
| Iris | No |
