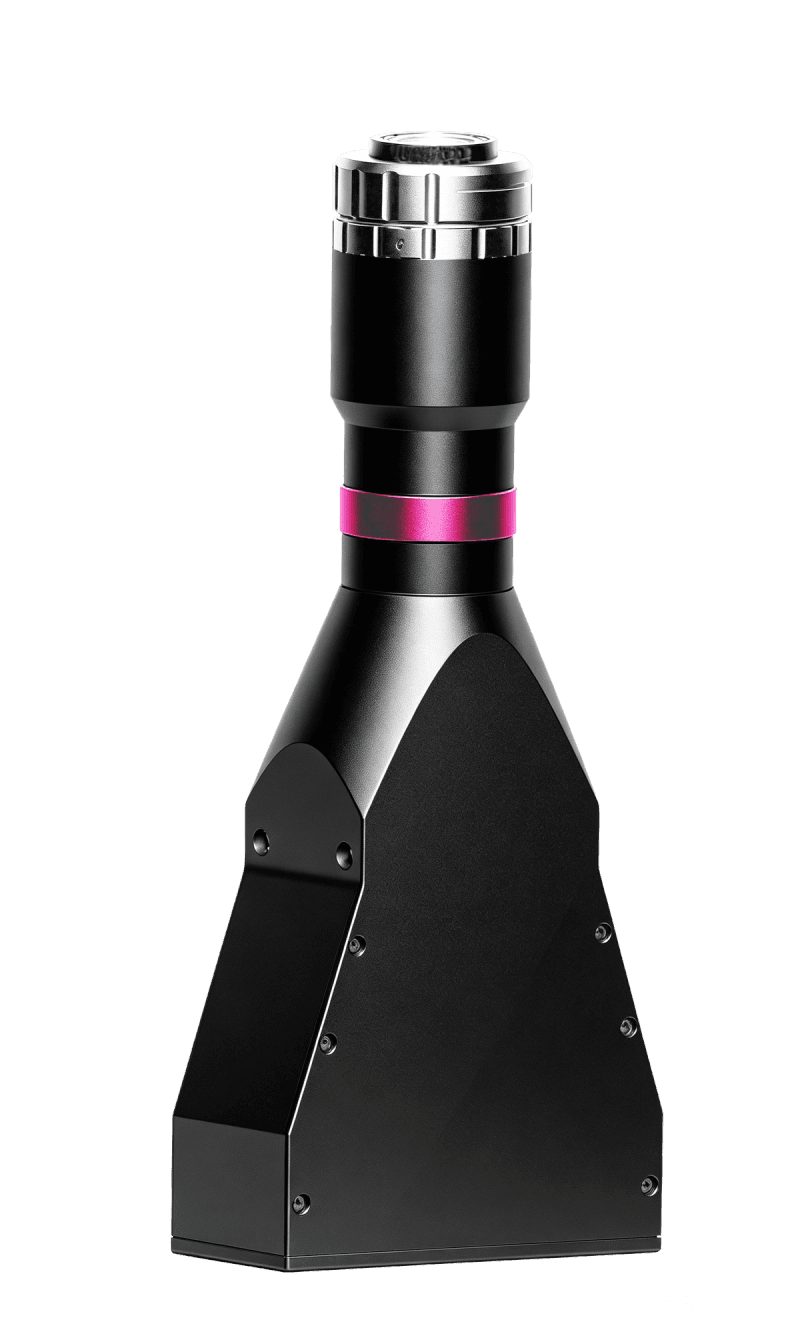

Flat Line Scan Telecentric Lenses
LTCM111-72-AL
LTCM111-72-AL
LTCM111-72-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.256 |
|---|---|
| Working Distance(mm) | 178 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 6.2 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >145 |
| Depth of Field(mm) | ±6.7@F11 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 224.3 |
| Object Field of View(Φmm) | 72 |
|---|---|
| Length of I/O(mm) | 418±3 |
| Coaxial Light Support | No |
| Iris | No |
