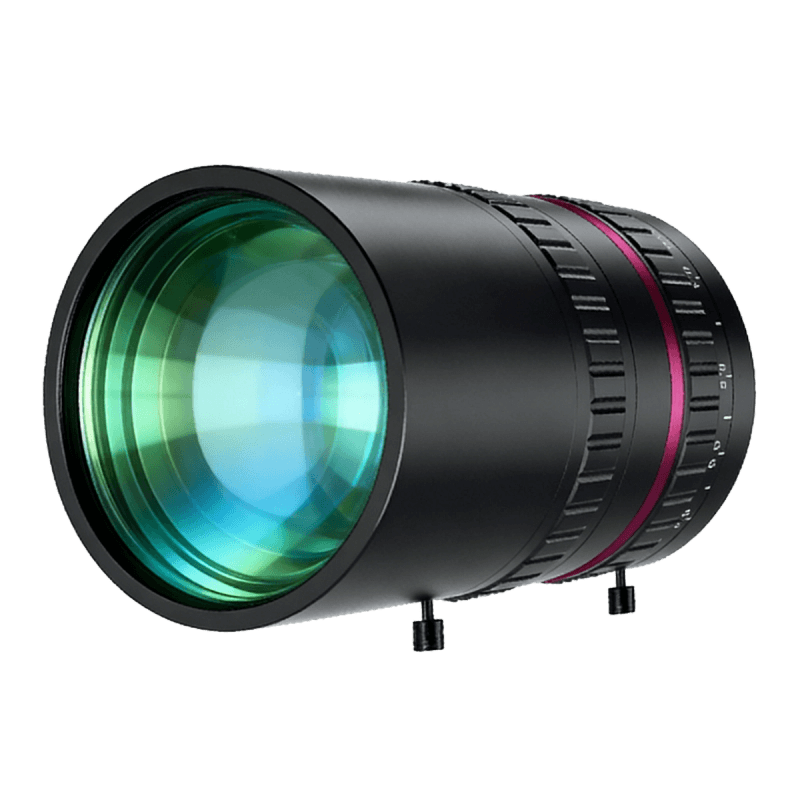

DTCZ111-035070V2 Zoom Telecentric Lens
COOLENS DTCZ111-035070V2 motorized zoom telecentric lens — software-switchable magnification with low distortion and high telecentricity.
Key Specifications
Optical Specifications
| Magnification | 0.35-0.7 |
|---|---|
| Working Distance(mm) | 78 |
| Max Sensor Size | 18.2(1.1") |
| F-Number | 5-6.8 |
| Telecentricity(°) | 1.35-0.17 |
| Distortion(%) | 0.1-0.2 |
| MTF30 (Image-side)(lp/mm) | 146-110 |
| Depth of Field(mm) | 3.3-1.1 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 127.5 |
| Object Field of View(Φmm) | 52-26 |
|---|---|
| NA | 0.035-0.051 |
| Filter Thread | M62x0.75 |
| Coaxial Light Support | No |
| Iris | No |
