Matrix Bi-Telecentric Lenses
DTCM71M-80H-M58-AL

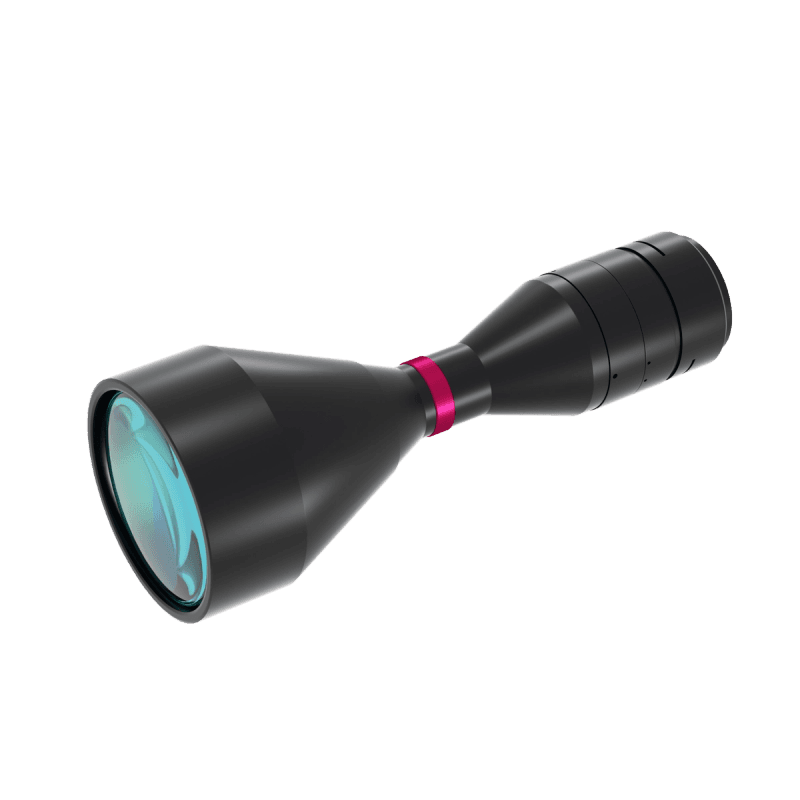

DTCM71M-80H-M58-AL Bi-Telecentric Lens
COOLENS DTCM71M-80H-M58-AL bi-telecentric lens — constant magnification, low distortion and high telecentricity for precision measurement.
Key Specifications
Optical Specifications
| Magnification | 0.488 |
|---|---|
| Working Distance(mm) | 228±4 |
| Max Sensor Size | 39 |
| F-Number | 9.2 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | 96 |
| Depth of Field(mm) | 3.1 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 285.2 |
| Object Field of View(Φmm) | 80 |
|---|---|
| NA | 0.03717 |
| Length of I/O(mm) | 525±4 |
| Filter Thread | M103x0.75 |
| Coaxial Light Support | No |
| Iris | No |
