Matrix Bi-Telecentric Lenses

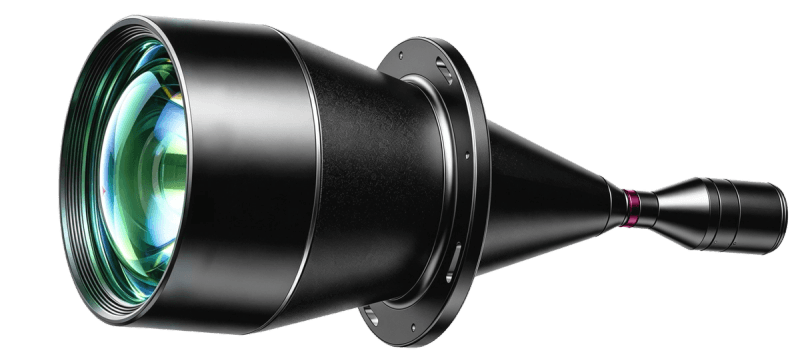

DTCM71M-240H-M58-AL
DTCM71M-240H-M58-AL
DTCM71M-240H-M58-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.163 |
|---|---|
| Working Distance(mm) | 410±6 |
| Max Sensor Size | 39 |
| F-Number | 7.5 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >130 |
| Depth of Field(mm) | ±24.3@F16 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 657.7 |
| Object Field of View(Φmm) | 240 |
|---|---|
| NA | 0.01249 |
| Length of I/O(mm) | 1080±6 |
| Filter Thread | M272 P1.0 |
| Coaxial Light Support | No |
| Iris | No |
