DTCM430H-56-M58-AL

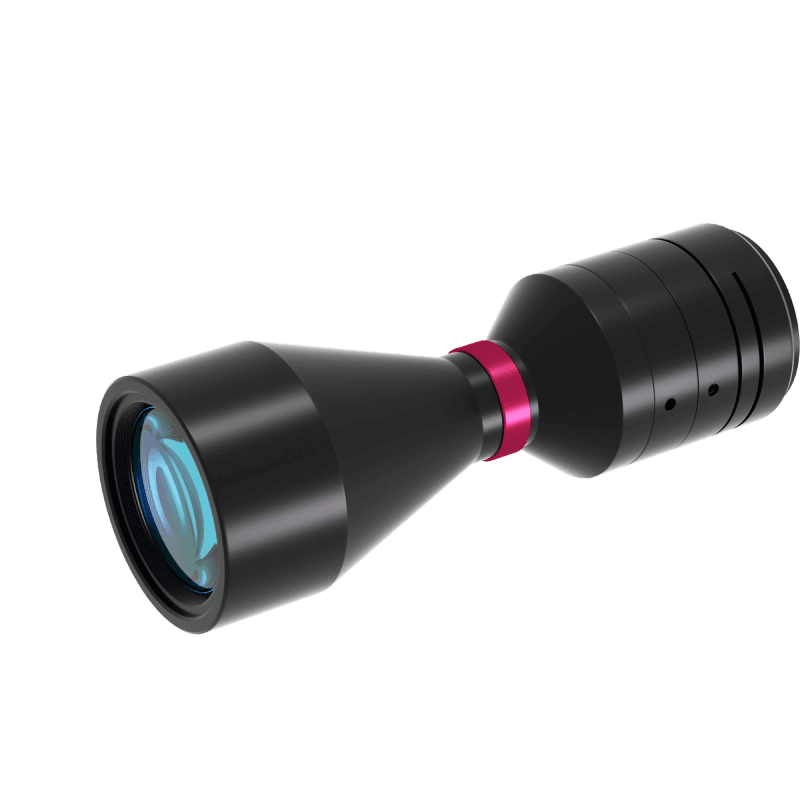

DTCM430H-56-M58-AL Bi-Telecentric Lens
COOLENS DTCM430H-56-M58-AL bi-telecentric lens — constant magnification, low distortion and high telecentricity for precision measurement.
Key Specifications
Optical Specifications
| Magnification | 0.421 |
|---|---|
| Working Distance(mm) | 138±3 |
| Max Sensor Size | 23.6(4/3") |
| F-Number | 7.9 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >112 |
| Depth of Field(mm) | ±3.6@F16 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 210.1 |
| Object Field of View(Φmm) | 56 |
|---|---|
| NA | 0.02656 |
| Length of I/O(mm) | 360±3 |
| Filter Thread | M70 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
