DTCM Small Format Bi-Telecentric Lenses

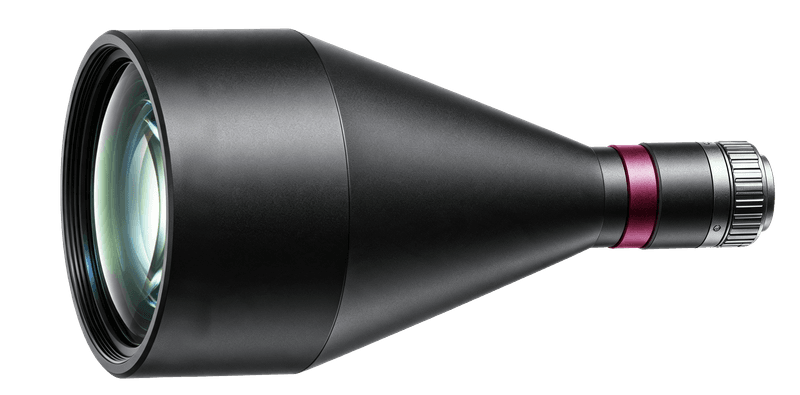

DTCM230-90-AL
DTCM230-90-AL
DTCM230-90-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.127 |
|---|---|
| Working Distance(mm) | 208±3 |
| Max Sensor Size | 11.4(2/3") |
| F-Number | 4.9 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >180 |
| Depth of Field(mm) | ±27.2@F11 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 217.0 |
| Object Field of View(Φmm) | 90 |
|---|---|
| NA | 0.01299 |
| Length of I/O(mm) | 443±3 |
| Filter Thread | M111 P0.75 |
| Coaxial Light Support | No |
| Iris | No |
