DTCM Small Format Bi-Telecentric Lenses
DTCM230-48-AL

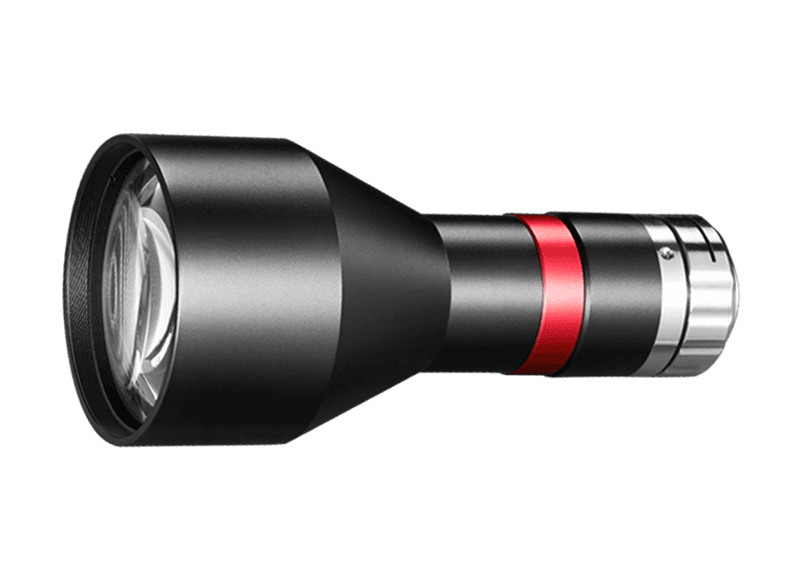

DTCM230-48-AL Bi-Telecentric Lens
COOLENS DTCM230-48-AL bi-telecentric lens — constant magnification, low distortion and high telecentricity for precision measurement.
Key Specifications
Optical Specifications
| Magnification | 0.238 |
|---|---|
| Working Distance(mm) | 128±3 |
| Max Sensor Size | 11.4(2/3") |
| F-Number | 5.4 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >165 |
| Depth of Field(mm) | ±7.7@F11 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 136.9 |
| Object Field of View(Φmm) | 48 |
|---|---|
| NA | 0.02435 |
| Length of I/O(mm) | 282±3 |
| Filter Thread | M60 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
