DTCM Small Format Bi-Telecentric Lenses

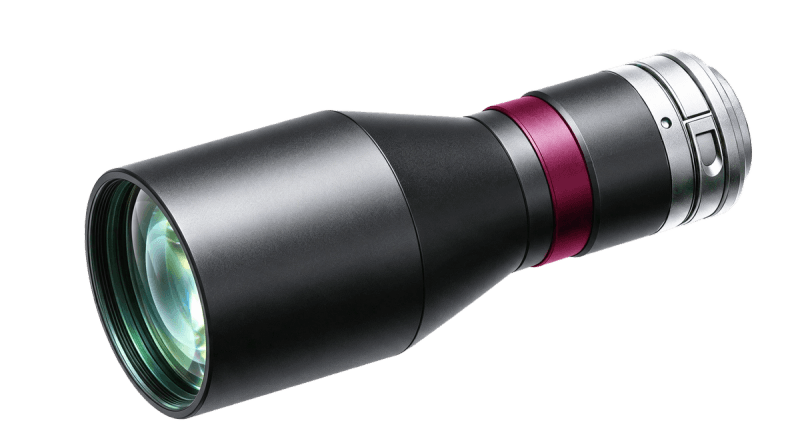

DTCM230-36-AL
DTCM230-36-AL
DTCM230-36-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.317 |
|---|---|
| Working Distance(mm) | 110±2 |
| Max Sensor Size | 11.4(2/3 |
| F-Number | 5.4 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >145 |
| Depth of Field(mm) | ±4.3@F11 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 138 |
| Object Field of View(Φmm) | 36 |
|---|---|
| NA | 0.02951 |
| Length of I/O(mm) | 265±2 |
| Filter Thread | M50 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
