VICO
Matrix Bi-Telecentric Lenses

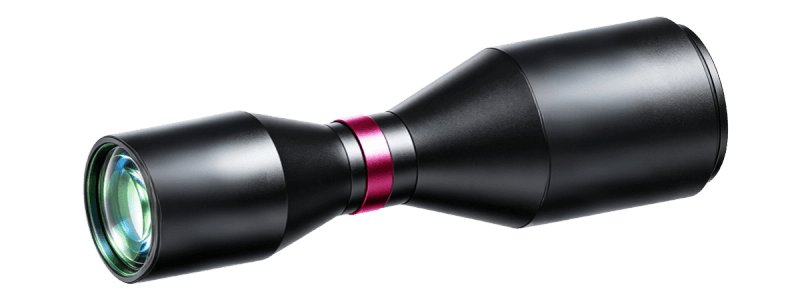

DTCM210-36-M58-AL
DTCM210-36-M58-AL
DTCM210-36-M58-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.917 |
|---|---|
| Working Distance(mm) | 110±2 |
| Max Sensor Size | 33(2") |
| F-Number | 15.5 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >50 |
| Depth of Field(mm) | ±0.9@F20 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 225.0 |
| Object Field of View(Φmm) | 36 |
|---|---|
| NA | 0.02951 |
| Length of I/O(mm) | 347±2 |
| Filter Thread | M50 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
