Matrix Bi-Telecentric Lenses
DTCM210-240H-M58-AL

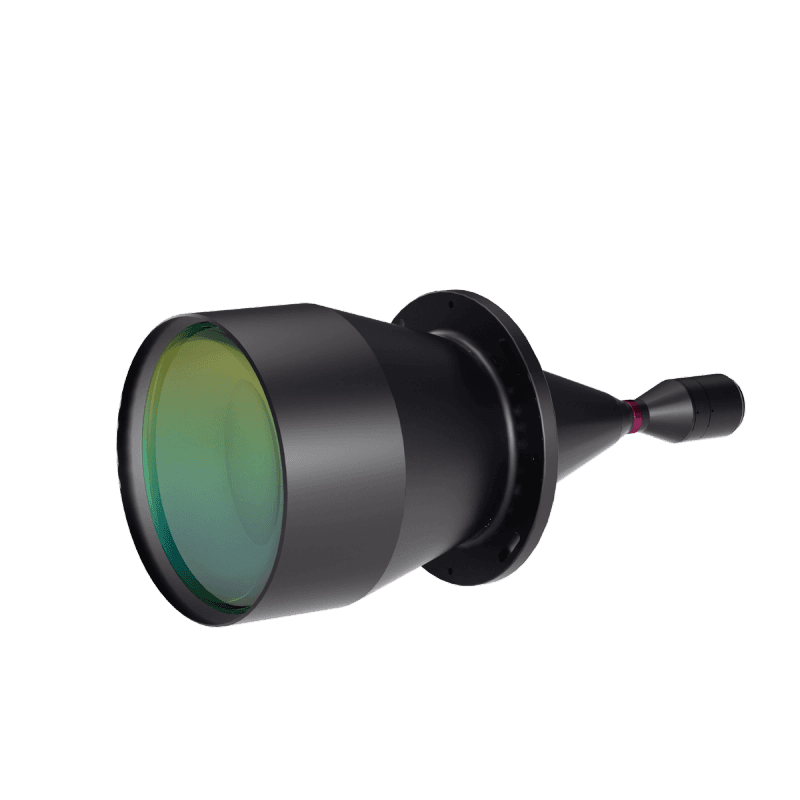

DTCM210-240H-M58-AL Bi-Telecentric Lens
COOLENS DTCM210-240H-M58-AL bi-telecentric lens — constant magnification, low distortion and high telecentricity for precision measurement.
Key Specifications
Optical Specifications
| Magnification | 0.138 |
|---|---|
| Working Distance(mm) | 410±6 |
| Max Sensor Size | 33(2") |
| F-Number | 7.8 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >110 |
| Depth of Field(mm) | ±33.9@F16 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 641.5 |
| Object Field of View(Φmm) | 240 |
|---|---|
| NA | 0.00886 |
| Length of I/O(mm) | 1064±6 |
| Filter Thread | M272 P1.0 |
| Coaxial Light Support | No |
| Iris | No |
