Matrix Bi-Telecentric Lenses
DTCM175-240H-M42-AL
DTCM175-240H-M42-AL

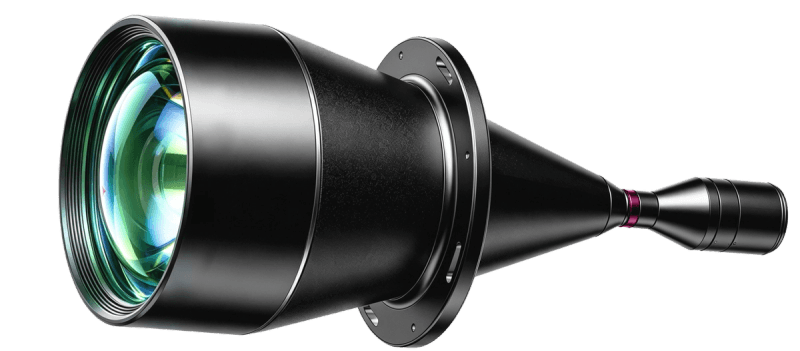

DTCM175-240H-M42-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.121 |
|---|---|
| Working Distance(mm) | 410±6 |
| Max Sensor Size | 29(1.75") |
| F-Number | 6.8 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >125 |
| Depth of Field(mm) | ±43.7@F16 |
Mechanical Specifications
| Camera Mount | M42 |
|---|---|
| Total Length(mm) | 625.8 |
| Weight(g) | 19800 |
| Object Field of View(Φmm) | 240 |
|---|---|
| NA | 0.00886 |
| Length of I/O(mm) | 1048±6 |
| Filter Thread | M272 P1.0 |
| Coaxial Light Support | No |
| Iris | No |
