Matrix Bi-Telecentric Lenses
DTCM16K-150-AL

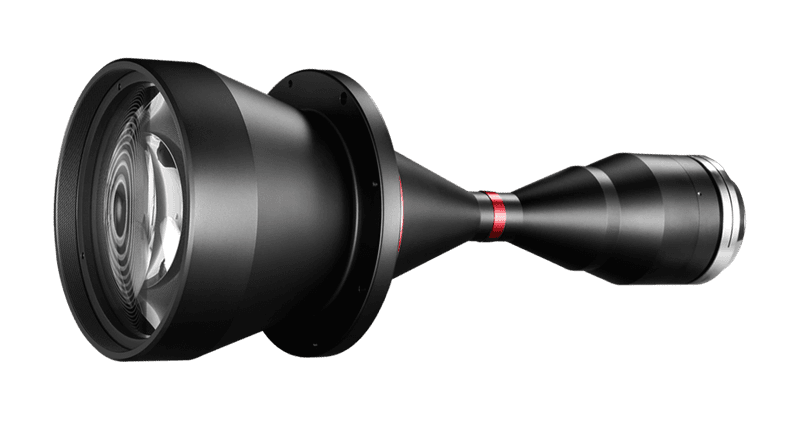

DTCM16K-150-AL Bi-Telecentric Lens
COOLENS DTCM16K-150-AL bi-telecentric lens — constant magnification, low distortion and high telecentricity for precision measurement.
Key Specifications
Optical Specifications
| Magnification | 0.393 |
|---|---|
| Working Distance(mm) | 300±5 |
| Max Sensor Size | 59 |
| F-Number | 19.8 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >45 |
| Depth of Field(mm) | ±5.1@F20 |
Mechanical Specifications
| Camera Mount | M72 |
|---|---|
| Total Length(mm) | 482.0 |
| Object Field of View(Φmm) | 150 |
|---|---|
| NA | 0.00992 |
| Length of I/O(mm) | 794±5 |
| Filter Thread | M178 P1.0 |
| Coaxial Light Support | No |
| Iris | No |
