Matrix Bi-Telecentric Lenses
DTCM150M-135-M72-19.5-AL
DTCM150M-135-M72-19.5-AL

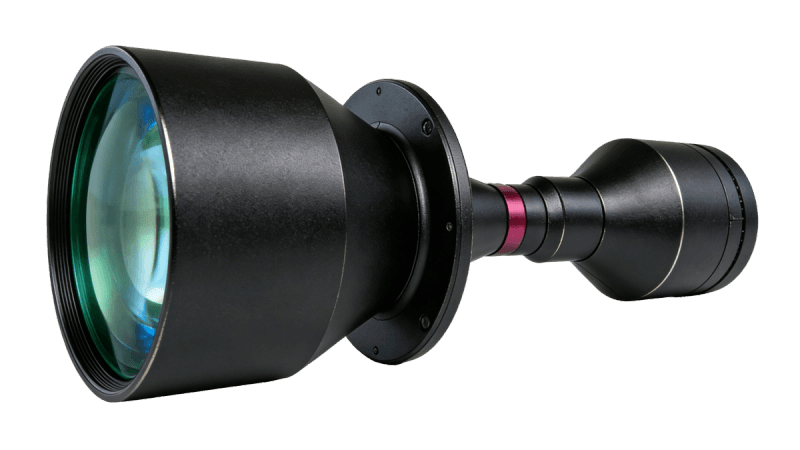

DTCM150M-135-M72-19.5-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 300 |
| Max Sensor Size | 67.6(150M) |
| F-Number | 8 |
| Telecentricity(°) | 0.05 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 100 |
| Depth of Field(mm) | 2.56 |
Mechanical Specifications
| Camera Mount | M72 |
|---|---|
| Total Length(mm) | 516.9 |
| Object Field of View(Φmm) | 135.2 |
|---|---|
| NA | 0.03125 |
| Length of I/O(mm) | 836.4 |
| Filter Thread | M163x1.0 |
| Coaxial Light Support | No |
| Iris | No |
