DTCM Small Format Bi-Telecentric Lenses
DTCM111-36-AL

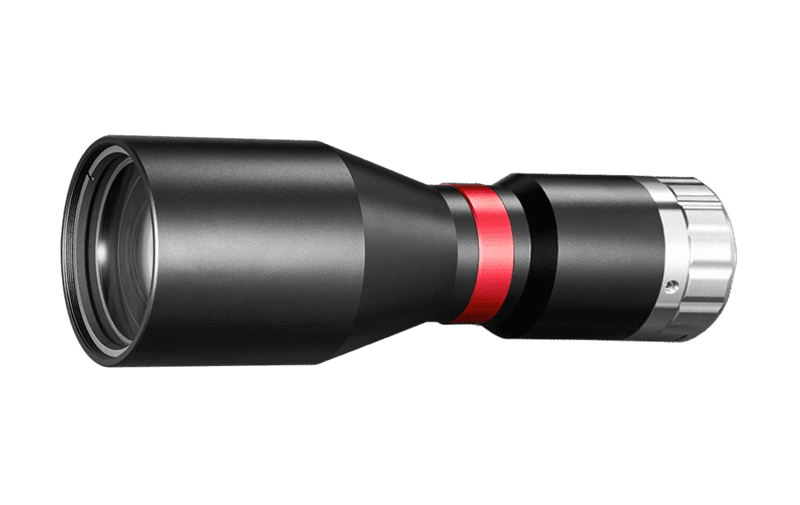

DTCM111-36-AL Bi-Telecentric Lens
COOLENS DTCM111-36-AL bi-telecentric lens — constant magnification, low distortion and high telecentricity for precision measurement.
Key Specifications
Optical Specifications
| Magnification | 0.511 |
|---|---|
| Working Distance(mm) | 110±2 |
| Max Sensor Size | 18.4(1.1") |
| F-Number | 8.7 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >85 |
| Depth of Field(mm) | ±3.0@F20 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 167.7 |
| Object Field of View(Φmm) | 36 |
|---|---|
| NA | 0.02951 |
| Length of I/O(mm) | 295±2 |
| Filter Thread | M50 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
