VICO
Dual-Field Optical Systems

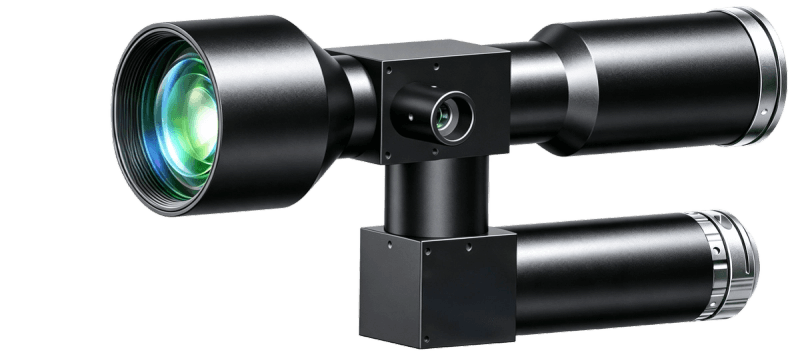

DTCADV07-20-110C-111
DTCADV07-20-110C-111
DTCADV07-20-110C-111 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.7, 2 |
|---|---|
| Working Distance(mm) | 110 |
| Max Sensor Size | 18.4(1.1"), 18.4(1.1") |
| F-Number | 7.8, 13.2 |
| Distortion(%) | 0.14, 0.05 |
| MTF30 (Image-side)(lp/mm) | 88.9, 59.8 |
| Object Resolution(μm) | 8, 4.7 |
| Depth of Field(mm) | 1.3, 0.3 |
Mechanical Specifications
| Camera Mount | C, C |
|---|---|
| Total Length(mm) | 236.6 |
| Object Field of View(Φmm) | 26.7, 9.0 |
|---|---|
| NA | 0.0445, 0.0755 |
| Coaxial Light Support | No |
| Iris | No |
