VICO
Dual-Field Optical Systems

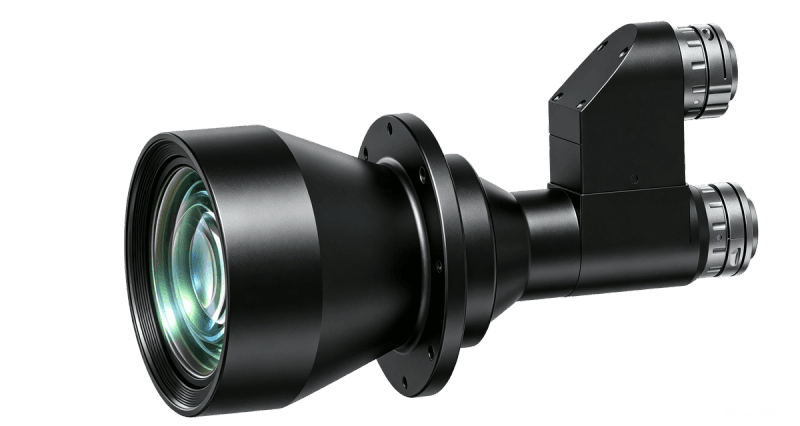

DTCADV-0142-036-238V3
DTCADV-0142-036-238V3
DTCADV-0142-036-238V3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.142,0.368 |
|---|---|
| Working Distance(mm) | 238 |
| Max Sensor Size | 14.2,9.2 |
| F-Number | 5,5 |
| Telecentricity(°) | 0.05,0.03 |
| Distortion(%) | 0.05,0.01 |
| MTF30 (Image-side)(lp/mm) | >180,>150 |
| Depth of Field(mm) | ±9.9@F5,±1.5@F5 |
Mechanical Specifications
| Camera Mount | C,C |
|---|---|
| Total Length(mm) | 257.6 |
| Object Field of View(Φmm) | 100,25 |
|---|---|
| NA | 0.0142,0.03677 |
| Coaxial Light Support | No |
| Iris | No |
