Ultra Resolution Bi-Telecentric Lenses

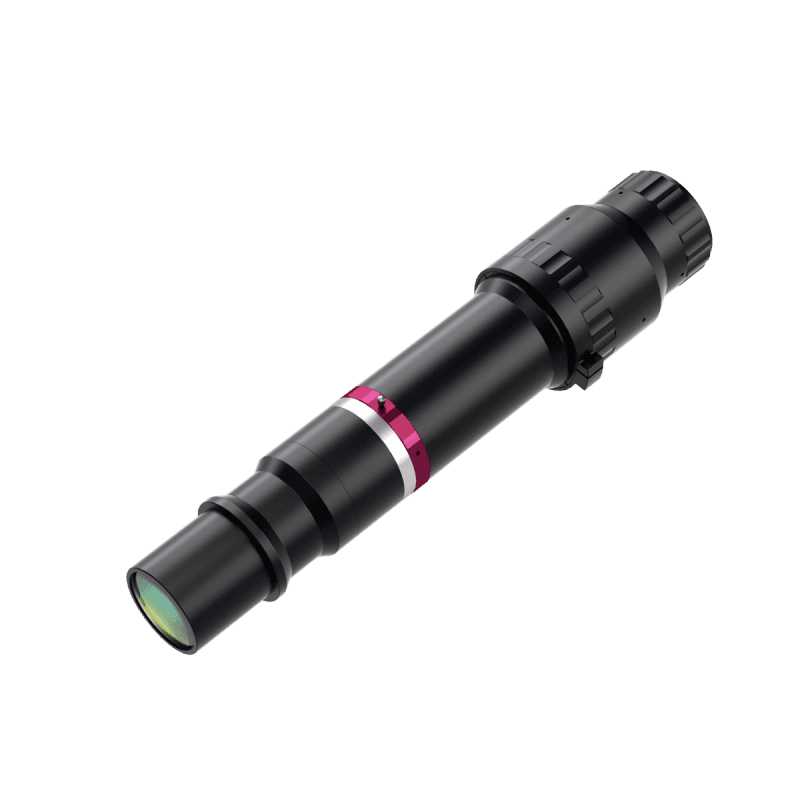

DTCA35F-14.6-G-M58-AL
DTCA35F-14.6-G-M58-AL Bi-Telecentric AOI Lens
COOLENS DTCA35F-14.6-G-M58-AL bi-telecentric AOI lens — high resolution, low distortion and large-sensor coverage for PCB, wafer and display inspection.
Key Specifications
Optical Specifications
| Magnification | 3.0 |
|---|---|
| Working Distance(mm) | 60 |
| Max Sensor Size | 35F(44mm) |
| F-Number | 8.8-32 |
| Telecentricity(°) | 0.0065 |
| Distortion(%) | 0.045 |
| MTF30 (Image-side)(lp/mm) | 106-33 |
| Depth of Field(mm) | 0.08-0.28 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 359.4 |
| Object Field of View(Φmm) | 14.6 |
|---|---|
| NA | 0.17-0.04693 |
| Length of I/O(mm) | 431.4 |
| Filter Thread | M47 P0.5 |
| Coaxial Light Support | No |
| Iris | Yes |
