DTCA Large Format Line Scan Telecentric Lenses

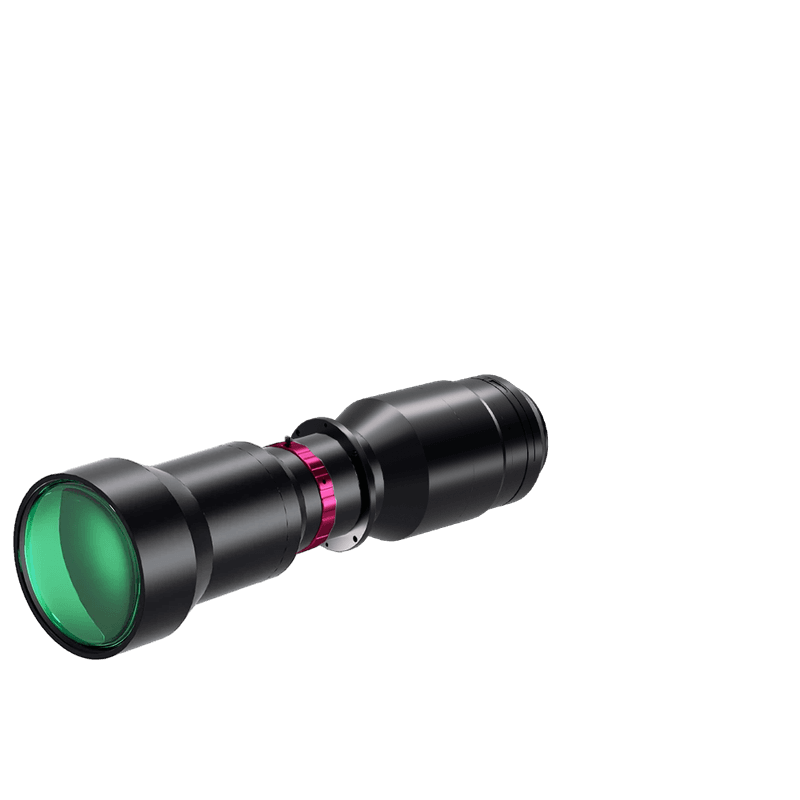

DTCA24K-58.7-M90-AL
DTCA24K-58.7-M90-AL
DTCA24K-58.7-M90-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.499 |
|---|---|
| Working Distance(mm) | 122 |
| Max Sensor Size | 88 |
| F-Number | 7.3 |
| Telecentricity(°) | 0.04 |
| Distortion(%) | 0.06 |
| MTF30 (Image-side)(lp/mm) | 117 |
| Object Resolution(μm) | 3.3 |
| Depth of Field(mm) | ±0.15@F7.3 |
Mechanical Specifications
| Camera Mount | M90 |
|---|---|
| Total Length(mm) | 481.2 |
| Object Field of View(Φmm) | 58.7 |
|---|---|
| NA | 0.10244 |
| Length of I/O(mm) | 615 |
| Filter Thread | None |
| Coaxial Light Support | No |
| Iris | No |
