DTCA Large Format Line Scan Telecentric Lenses

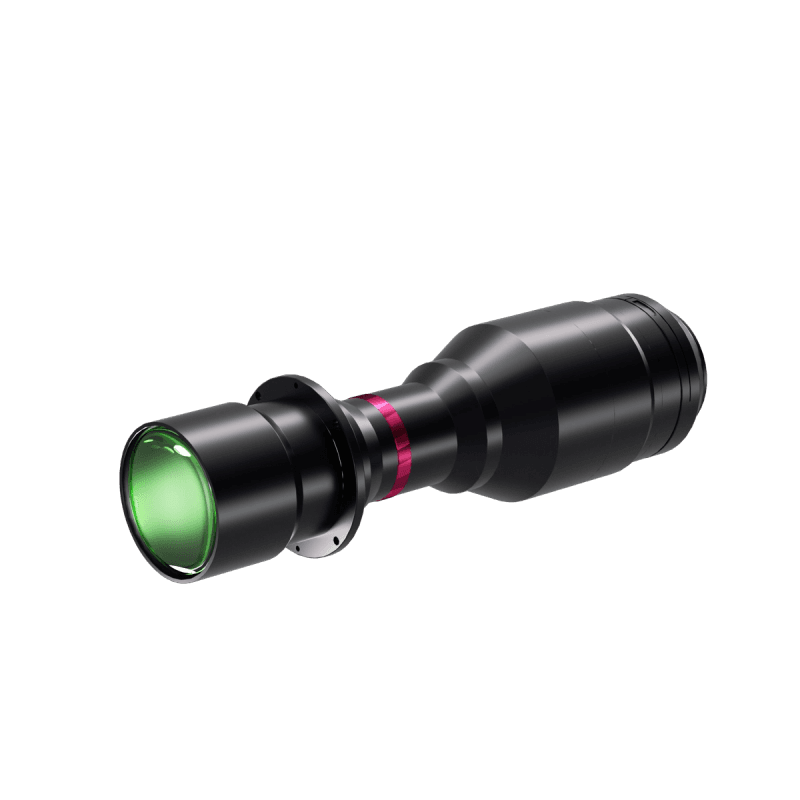

DTCA24K-44-G-M90-AL
DTCA24K-44-G-M90-AL
DTCA24K-44-G-M90-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 2.0 |
|---|---|
| Working Distance(mm) | 118 |
| Max Sensor Size | 88 |
| F-Number | 4.8-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.045 |
| MTF30 (Image-side)(lp/mm) | 64-32 |
| Depth of Field(mm) | 0.1-0.6 |
Mechanical Specifications
| Camera Mount | M90 |
|---|---|
| Total Length(mm) | 463.0 |
| Object Field of View(Φmm) | 44 |
|---|---|
| NA | 0.20814-0.03124 |
| Length of I/O(mm) | 593 |
| Coaxial Light Support | No |
| Iris | Yes |
