DTCA Large Format Line Scan Telecentric Lenses
DTCA23K-93.7-M90-AL
DTCA23K-93.7-M90-AL

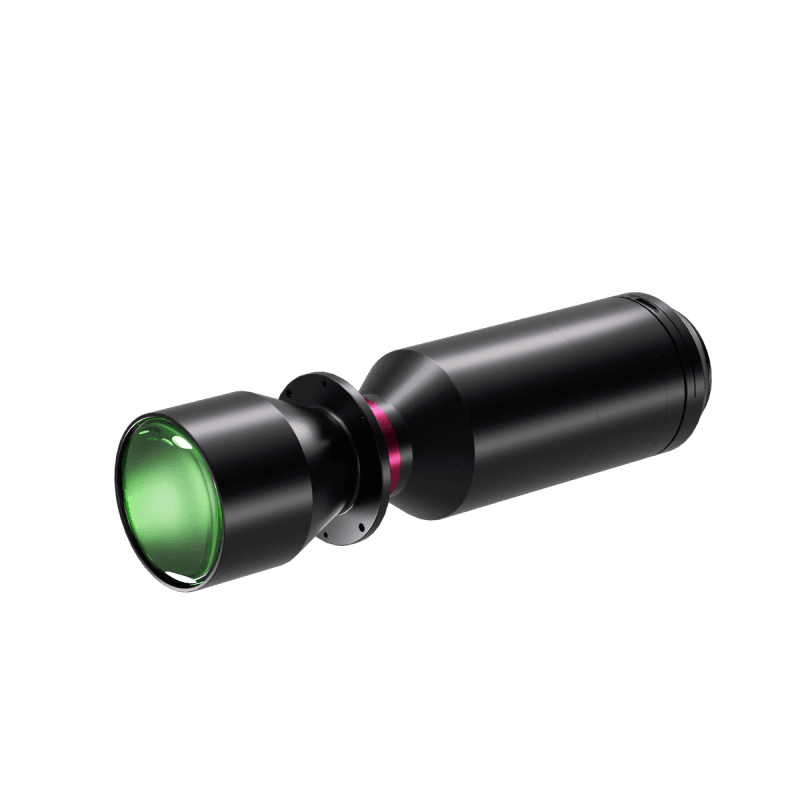

DTCA23K-93.7-M90-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.875 |
|---|---|
| Working Distance(mm) | 140 |
| Max Sensor Size | 82 |
| F-Number | 9.5 |
| Telecentricity(°) | 0.08 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | >97 |
| Depth of Field(mm) | ±0.5@F9.5 |
Mechanical Specifications
| Camera Mount | M90 |
|---|---|
| Total Length(mm) | 468.1 |
| Object Field of View(Φmm) | 93.7 |
|---|---|
| NA | 0.04601 |
| Length of I/O(mm) | 623 |
| Filter Thread | M95x1.0 |
| Coaxial Light Support | No |
| Iris | No |
