Ultra Resolution Bi-Telecentric Lenses
DTCA230-22L

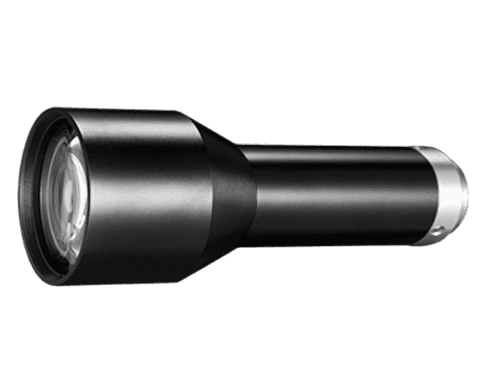

DTCA230-22L Bi-Telecentric AOI Lens
COOLENS DTCA230-22L bi-telecentric AOI lens — high resolution, low distortion and large-sensor coverage for PCB, wafer and display inspection.
Key Specifications
Optical Specifications
| Magnification | 0.5 |
|---|---|
| Working Distance(mm) | 65 |
| Max Sensor Size | 11(2/3") |
| F-Number | 5.0 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >160 |
| Depth of Field(mm) | ±0.8@F5.0 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 106.7 |
| Object Field of View(Φmm) | 22 |
|---|---|
| NA | 0.05 |
| Length of I/O(mm) | 189 |
| Filter Thread | M34 P0.5 |
| Coaxial Light Support | No |
| Iris | No |
