Ultra Resolution Bi-Telecentric Lenses

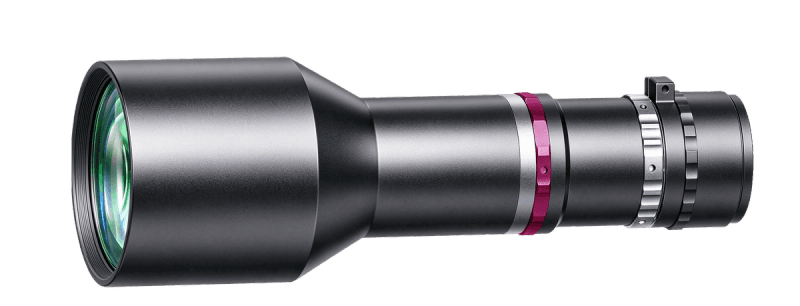

DTCA185-43.6-G-M42-AL
DTCA185-43.6-G-M42-AL
DTCA185-43.6-G-M42-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.688 |
|---|---|
| Working Distance(mm) | 220 |
| Max Sensor Size | 30(1.85") |
| F-Number | 8-32 |
| Telecentricity(°) | 0.01 |
| Distortion(%) | 0.02 |
| MTF30 (Image-side)(lp/mm) | 114-31 |
| Object Resolution(μm) | 7.8-31.2 |
| Depth of Field(mm) | 1.4-5.4 |
Mechanical Specifications
| Camera Mount | M42 |
|---|---|
| Total Length(mm) | 211.4 |
| Object Field of View(Φmm) | 43.6 |
|---|---|
| NA | 0.043-0.01075 |
| Length of I/O(mm) | 443.4 |
| Filter Thread | M70 P0.75 |
| Coaxial Light Support | No |
| Iris | Yes |
