Ultra Resolution Bi-Telecentric Lenses

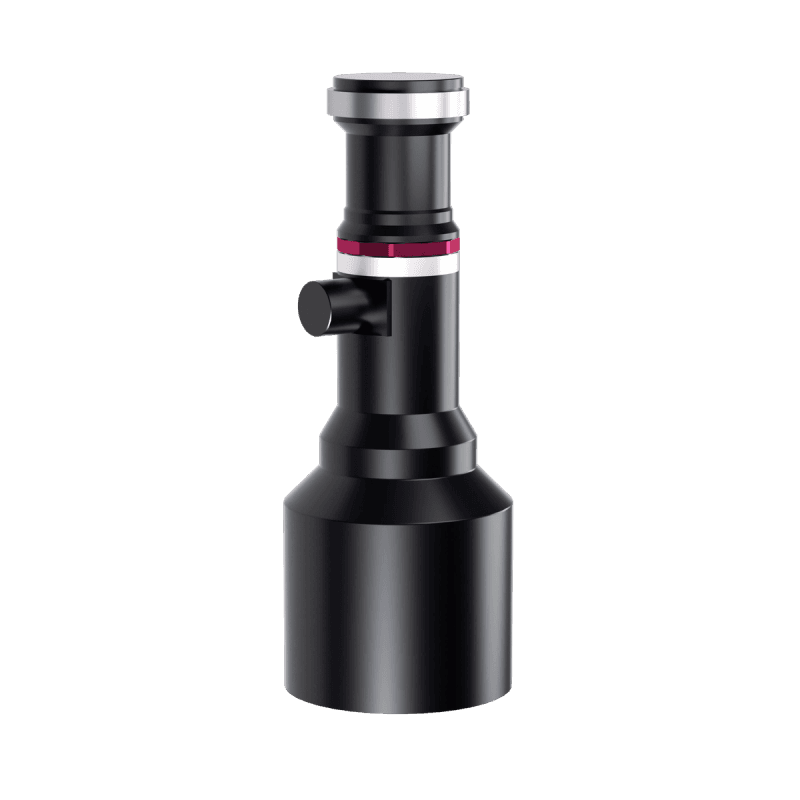

DTCA175-51C-G-M42-ALV3
DTCA175-51C-G-M42-ALV3
DTCA175-51C-G-M42-ALV3 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.55 |
|---|---|
| Working Distance(mm) | 220 |
| Max Sensor Size | 28.2(1.75") |
| F-Number | 8.0-32 |
| Telecentricity(°) | 0.09 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 106-30 |
| Depth of Field(mm) | 2.1-8.4 |
Mechanical Specifications
| Camera Mount | M42 |
|---|---|
| Total Length(mm) | 197.9 |
| Object Field of View(Φmm) | 51.2 |
|---|---|
| NA | 0.0344-0.0089 |
| Length of I/O(mm) | 430 |
| Filter Thread | M72 P0.75 |
| Coaxial Light Support | Yes |
| Iris | Yes |
