Ultra Resolution Bi-Telecentric Lenses

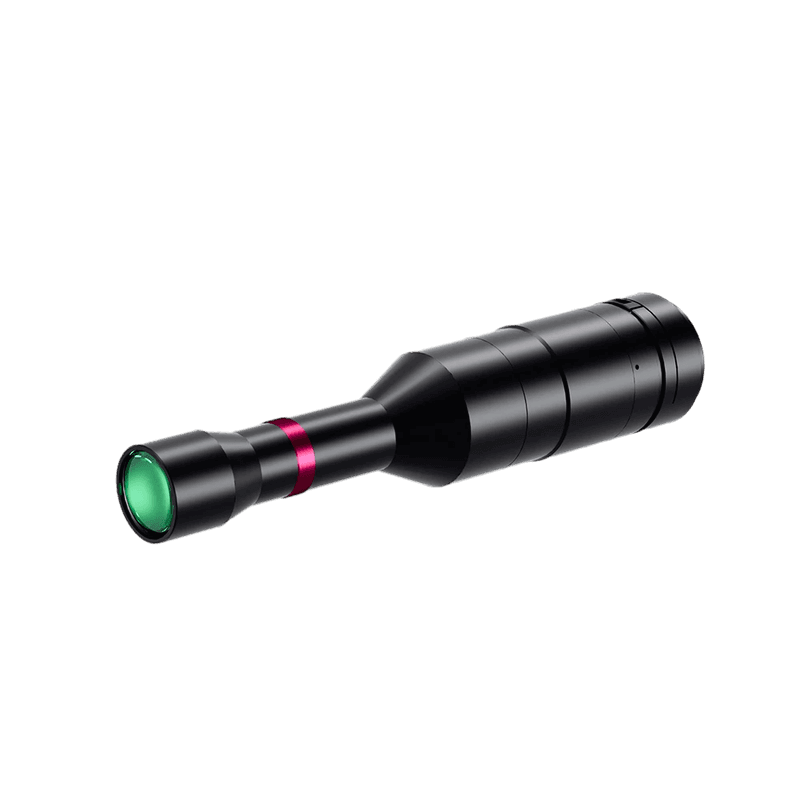

DTCA175-15.7-M42-AL
DTCA175-15.7-M42-AL
DTCA175-15.7-M42-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.8 |
|---|---|
| Working Distance(mm) | 71 |
| Max Sensor Size | 29(1.75") |
| F-Number | 20.0 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.1 |
| MTF30 (Image-side)(lp/mm) | >45 |
| Depth of Field(mm) | ±0.25@F20 |
Mechanical Specifications
| Camera Mount | M42 |
|---|---|
| Total Length(mm) | 311.9 |
| Object Field of View(Φmm) | 15.7 |
|---|---|
| NA | 0.0461 |
| Length of I/O(mm) | 395 |
| Filter Thread | Unthreaded |
| Coaxial Light Support | No |
| Iris | No |
