DTCA Large Format Line Scan Telecentric Lenses
DTCA150M-8.9C-G-M95-AL(8)
DTCA150M-8.9C-G-M95-AL(8)

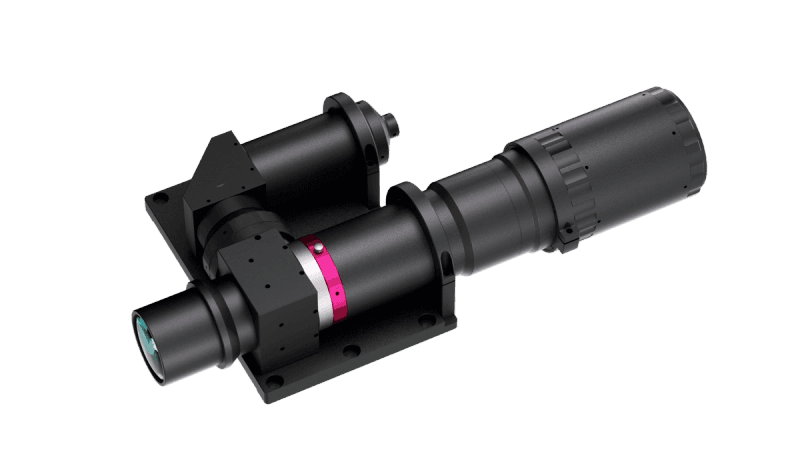

DTCA150M-8.9C-G-M95-AL(8) industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 7.5 |
|---|---|
| Working Distance(mm) | 49 |
| Max Sensor Size | 66.7(150M) |
| F-Number | 18.4-42 |
| Telecentricity(°) | 0.09 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 51-32 |
| Object Resolution(μm) | 1.7-2.9 |
| Depth of Field(mm) | 0.026-0.05 |
Mechanical Specifications
| Camera Mount | M95 |
|---|---|
| Total Length(mm) | 394.1 |
| Object Field of View(Φmm) | 8.9 |
|---|---|
| NA | 0.2-0.1172 |
| Length of I/O(mm) | 455.1 |
| Coaxial Light Support | Yes |
| Iris | Yes |
