VICO
Ultra Resolution Bi-Telecentric Lenses

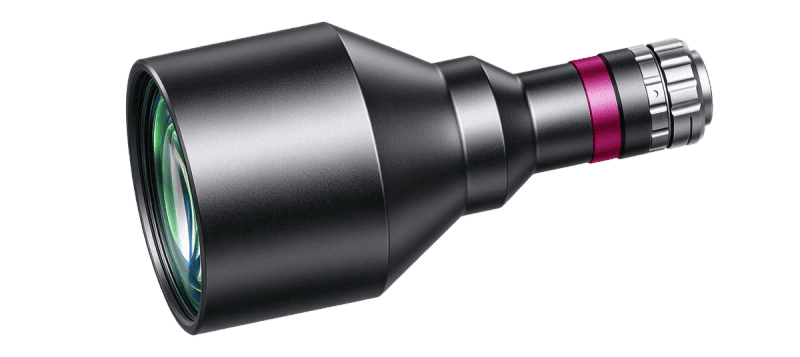

DTCA117-75.2-ALV2
DTCA117-75.2-ALV2
DTCA117-75.2-ALV2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.125 |
|---|---|
| Working Distance(mm) | 200 |
| Max Sensor Size | 9.4(1/1.7") |
| F-Number | 4.9 |
| Telecentricity(°) | 0.05 |
| Distortion(%) | 0.093 |
| MTF30 (Image-side)(lp/mm) | >169 |
| Object Resolution(μm) | 26.4 |
| Depth of Field(mm) | ±12.7@F4.9 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 184.2 |
| Object Field of View(Φmm) | 75.44 |
|---|---|
| NA | 0.0127 |
| Length of I/O(mm) | 401.7 |
| Coaxial Light Support | No |
| Iris | No |
