Ultra Resolution Bi-Telecentric Lenses

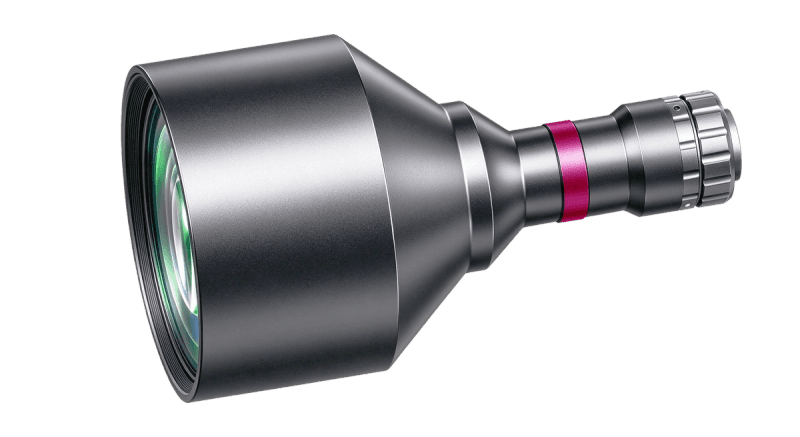

DTCA111-103-ALV2
DTCA111-103-ALV2
DTCA111-103-ALV2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.172 |
|---|---|
| Working Distance(mm) | 185 |
| Max Sensor Size | 17.6(1.1") |
| F-Number | 8.0 |
| Telecentricity(°) | 0.46 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 105.9 |
| Object Resolution(μm) | 31.28 |
| Depth of Field(mm) | 21.7 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 202.7 |
| Object Field of View(Φmm) | 102.5 |
|---|---|
| NA | 0.0107 |
| Filter Thread | M116x0.75 |
| Coaxial Light Support | No |
| Iris | No |
