VICO

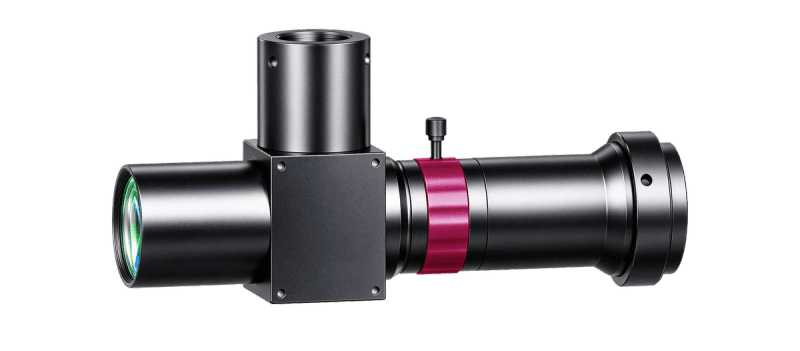

Ultra Resolution Bi-Telecentric Lenses
DTCA110-5.3C-G
DTCA110-5.3C-G
DTCA110-5.3C-G industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 3 |
|---|---|
| Working Distance(mm) | 40 |
| Max Sensor Size | 16(1") |
| F-Number | 12.5-32 |
| Telecentricity(°) | 0.01 |
| Distortion(%) | 0.05 |
| MTF30 (Image-side)(lp/mm) | 80.7-32.7 |
| Depth of Field(mm) | 0.1-0.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 105 |
| Object Field of View(Φmm) | 5.3 |
|---|---|
| NA | 0.12-0.0468 |
| Length of I/O(mm) | 200 |
| Filter Thread | M22 P0.5 |
| Coaxial Light Support | Yes |
| Iris | Yes |
