VICO
Ultra Resolution Bi-Telecentric Lenses

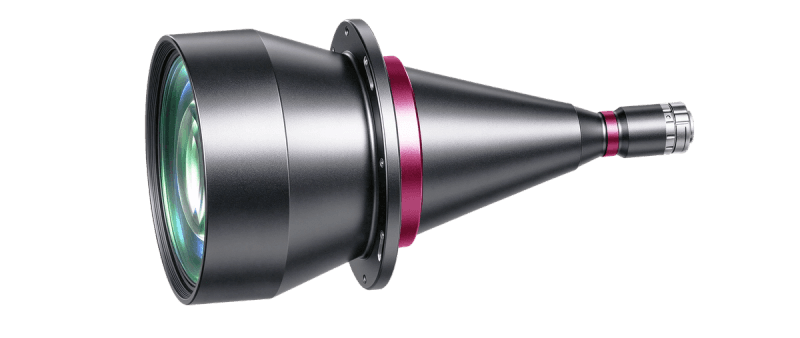

DTCA110-175-AL
DTCA110-175-AL
DTCA110-175-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 0.095 |
|---|---|
| Working Distance(mm) | 318 |
| Max Sensor Size | 16.6(1") |
| F-Number | 6.5 |
| Telecentricity(°) | <0.1 |
| Distortion(%) | <0.04 |
| MTF30 (Image-side)(lp/mm) | >144 |
| Depth of Field(mm) | ±28.8@F6.5 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 405.4 |
| Object Field of View(Φmm) | 174.8 |
|---|---|
| NA | 0.00736 |
| Length of I/O(mm) | 741 |
| Filter Thread | M204 P0.75 |
| Coaxial Light Support | No |
| Iris | No |
