Ultra Resolution Bi-Telecentric Lenses

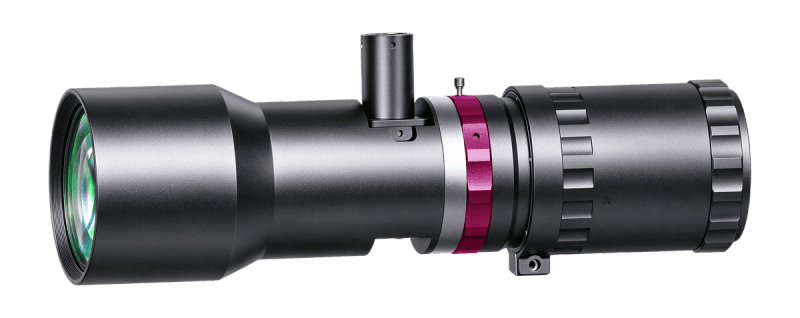

APO-DTCA65M-37.4C-G-M58-AL
APO-DTCA65M-37.4C-G-M58-AL
APO-DTCA65M-37.4C-G-M58-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.0 |
|---|---|
| Working Distance(mm) | 225 |
| Max Sensor Size | 37.4 |
| F-Number | 7.7-22 |
| Telecentricity(°) | 0.04 |
| Distortion(%) | 0.032 |
| MTF30 (Image-side)(lp/mm) | 116-46 |
| Depth of Field(mm) | 0.621-1.762 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 253 |
| Object Field of View(Φmm) | 37.4 |
|---|---|
| NA | 0.065-0.0227 |
| Length of I/O(mm) | 490 |
| Working Wavelength(nm) | 420~660 |
| Filter Thread | M70x0.5 |
| Coaxial Light Support | Yes |
| Iris | Yes |
