Ultra Resolution Bi-Telecentric Lenses

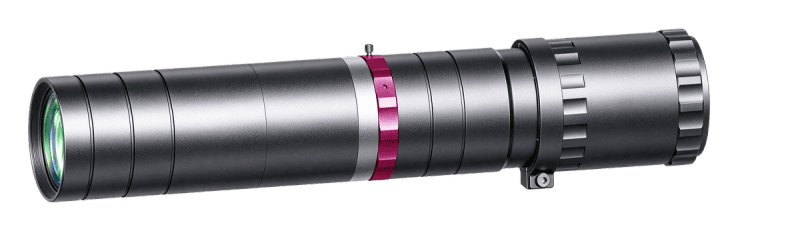

APO-DTCA210-22.8-G-M58-AL
APO-DTCA210-22.8-G-M58-AL
APO-DTCA210-22.8-G-M58-AL industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 1.4 |
|---|---|
| Working Distance(mm) | 150 |
| Max Sensor Size | 33(2") |
| F-Number | 7.8-32 |
| Telecentricity(°) | 0.1 |
| Distortion(%) | 0.03 |
| MTF30 (Image-side)(lp/mm) | 120-32.5 |
| Depth of Field(mm) | 0.31-1.22 |
Mechanical Specifications
| Camera Mount | M58 |
|---|---|
| Total Length(mm) | 320.0 |
| Object Field of View(Φmm) | 22.8 |
|---|---|
| NA | 0.09-0.02 |
| Length of I/O(mm) | 482 |
| Coaxial Light Support | No |
| Iris | Yes |
