Ultra Resolution Bi-Telecentric Lenses

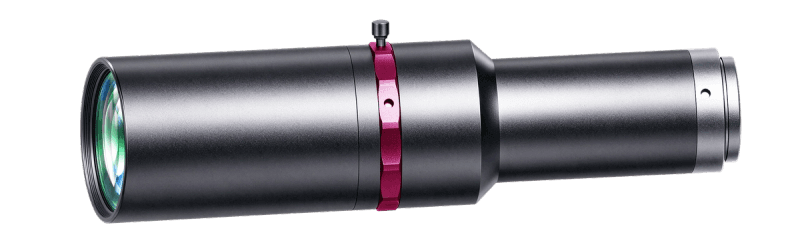

APO-DTCA121-6.6-GV2
APO-DTCA121-6.6-GV2
APO-DTCA121-6.6-GV2 industrial lens by COOLENS.
Key Specifications
Optical Specifications
| Magnification | 3.0 |
|---|---|
| Working Distance(mm) | 65 |
| Max Sensor Size | 20(1.2") |
| F-Number | 8.8-32 |
| Telecentricity(°) | 0.25 |
| Distortion(%) | 0.04 |
| MTF30 (Image-side)(lp/mm) | 107.4-31.6 |
| Object Resolution(μm) | 2.06-7.49 |
| Depth of Field(mm) | 0.1-0.3 |
Mechanical Specifications
| Camera Mount | C |
|---|---|
| Total Length(mm) | 153.5 |
| Object Field of View(Φmm) | 6.7 |
|---|---|
| NA | 0.17-0.0468 |
| Length of I/O(mm) | 236 |
| Coaxial Light Support | No |
| Iris | Yes |
