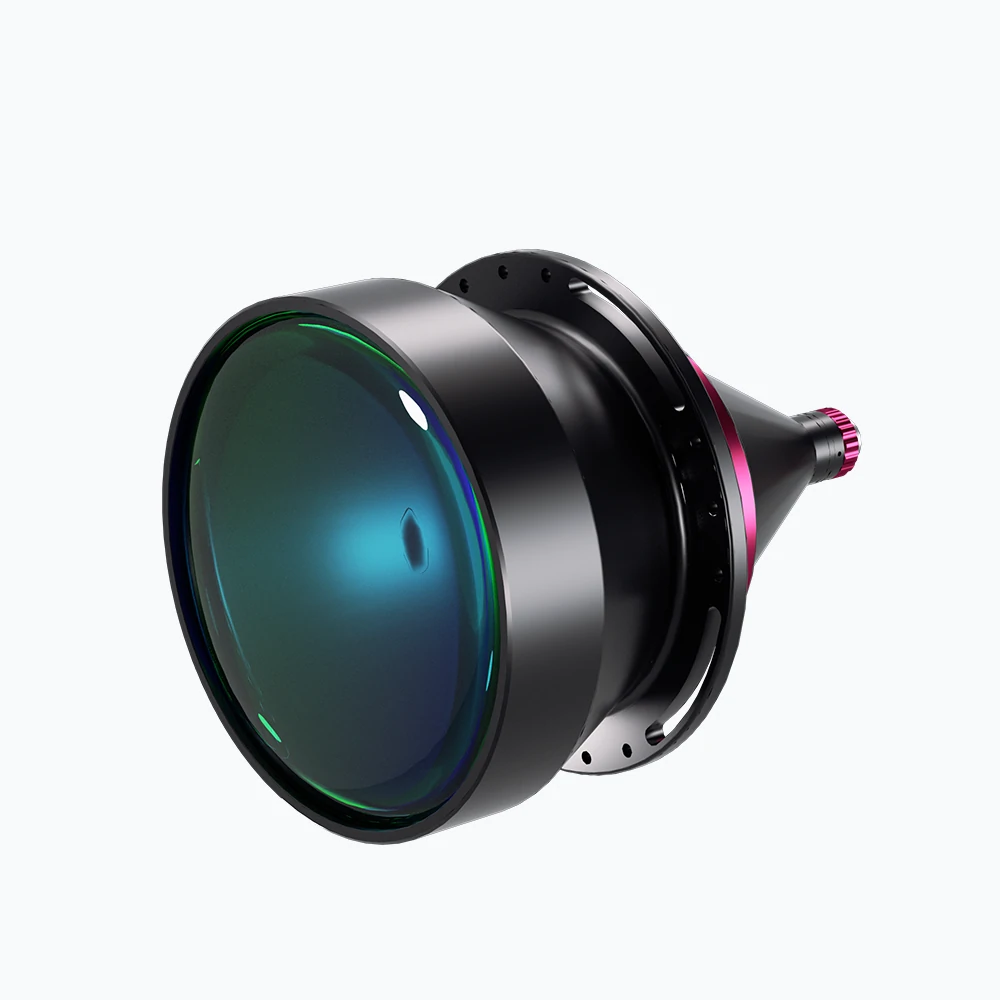

1" C-Mount Telecentric Lenses | DTCA110 COOLENS®

•Telecentric Lenses, Back Flange Length Adjustable •Up to 20 MegaPixels, 2.4μm Pixel Size Sensors •Up to 1", C-Mount Telecentric Lenses •Magnification 0.075X

Common Specifications

Request a Quote

Dedicated to machine vision technology.

About

Contact Us

About Us

Careers

Customer Care

Resources

Subscribe Now

Gain access to the 20 secrets of optical components in machine vision applications that others won’t tell you!

Members of

		Model NO.	FOV (Φmm)	Mag. β (x)	WD (mm)	Max. Sensor Format (Φmm)	Mount	Iris Adjustable	With Coaxial Port	BFL Adjustable	Product	Series	Specification PDF	3D IGS	3D STEP	Model_NO.	FOV_(Φmm)	Mag. β _(x)	WD_(mm)	Max. Sensor Format_(Φmm)	Aperture _(F/#)	MTF30_ (lp/mm)	DoF_ (mm)	Distortion_ (% max)	Telecentricity_ (°max)	I/O_ (mm)	Length_ (mm)	Mount_	Weight_ (kg)	Iris_Adjustable	With_Coaxial_Port	BFL_Adjustable
wdt_ID	Image	Model NO.	FOV (Φmm)	Mag. β (x)	WD (mm)	Max. Sensor Format (Φmm)	Mount	Iris Adjustable	With Coaxial Port	BFL Adjustable	Product	Series	Specification PDF	3D IGS	3D STEP	Model_NO.	FOV_(Φmm)	Mag. β _(x)	WD_(mm)	Max. Sensor Format_(Φmm)	Aperture _(F/#)	MTF30_ (lp/mm)	DoF_ (mm)	Distortion_ (% max)	Telecentricity_ (°max)	I/O_ (mm)	Length_ (mm)	Mount_	Weight_ (kg)	Iris_Adjustable	With_Coaxial_Port	BFL_Adjustable
1		DTCA230-22L	22	0.5	65±1	11.0(2/3")	C	NO	NO	NO	0.5X, 2/3" C-Mount Bi-Telecentric Lenses \| DTCA230 COOLENS®	DTCA230				DTCA230-22L	22	0.5	65±1	11.0(2/3")	5	>160	±0.8@F5.0	<0.1	<0.1	189±1	106.7	C	0.2	NO	NO	NO
2		DTCA230-22C	22	0.5	65±1	11.0(2/3")	C	NO	YES	NO	0.5X, 2/3" C-Mount Bi-Telecentric Lenses with Coaxial Illumination Port \| DTCA230 COOLENS®	DTCA230				DTCA230-22C	22	0.5	65±1	11.0(2/3")	5	>160	±0.8@F5.0	<0.1	<0.1	189±1	106.7	C	0.2	NO	YES	NO
3		DTCA230-27.5	27.5	0.4	85±2	11.0(2/3")	C	NO	NO	NO	0.4X, 2/3" C-Mount Bi-Telecentric Lenses \| DTCA230 COOLENS®	DTCA230				DTCA230-27.5	27.5	0.4	85±2	11.0(2/3")	4.5	>205	±1.1@F4.5	<0.03	<0.1	245±2	142.4	C	0.3	NO	NO	NO
4		DTCA230-27.5C	27.5	0.4	85±2	11.0(2/3")	C	NO	YES	NO	0.4X, 2/3" C-Mount Bi-Telecentric Lenses with Coaxial Illumination Port \| DTCA230 COOLENS®	DTCA230				DTCA230-27.5C	27.5	0.4	85±2	11.0(2/3")	4.5	>205	±1.1@F4.5	<0.03	<0.1	245±2	142.4	C	0.3	NO	YES	NO
5		DTCA230-37	37	0.3	110±2	11.0(2/3")	C	YES	NO	NO	0.3X, 2/3" C-Mount Bi-Telecentric Lenses Iris Adjustable \| DTCA230 COOLENS®	DTCA230				DTCA230-37	37	0.3	110±2	11.0(2/3")	3.75	>220	±1.7@F3.75	<0.1	<0.1	273±2	145.5	C	0.4	YES	NO	NO
6		DTCA230-37C	37	0.3	110±2	11.0(2/3")	C	YES	YES	NO	0.3X, 2/3" C-Mount Bi-Telecentric Lenses Iris Adjustable with Coaxial Illumination Port \| DTCA230 COOLENS®	DTCA230				DTCA230-37C	37	0.3	110±2	11.0(2/3")	3.75	>220	±1.7@F3.75	<0.1	<0.1	273±2	145.5	C	0.4	YES	YES	NO
7		DTCA230-66	66	0.166	173±3	11.0(2/3")	C	YES	NO	NO	0.166X, 2/3" C-Mount Bi-Telecentric Lenses Iris Adjustable \| DTCA230 COOLENS®	DTCA230				DTCA230-66	66	0.166	173±3	11.0(2/3")	3.3	>260	±4.8@F3.3	<0.1	<0.1	329±3	146.5	C	0.6	YES	NO	NO
8		DTCA110-215-AL	215	0.075	220±3	16.0(1")	C	NO	NO	YES	0.075X, 1" C-Mount Telecentric Lenses \| DTCA110 COOLENS®	DTCA110				DTCA110-215-AL	215	0.075	220±3	16.0(1")	4.35	>195	±30.9@F4.35			560±3	322.2	C	8.45	NO	NO	YES
9		DTCA121-5	5	4	45±1	20(1.2")	C	NO	NO	NO	4X, 1.2" C-Mount Telecentric Lenses \| DTCA121 COOLENS®	DTCA121				DTCA121-5	5	4	45±1	20(1.2")	11.7	>73	±0.03@F11.7	<0.08	<0.1	243±1	180.5	C	0.4	NO	NO	NO
10		DTCA121-5-G	5	4	45±1	20(1.2")	C	YES	NO	NO	4X, 1.2" C-Mount Telecentric Lenses Iris Adjustable \| DTCA121 COOLENS®	DTCA121				DTCA121-5-G	5	4	45±1	20(1.2")	≥11.7	>73	±0.03@F11.7	<0.08	<0.1	243±1	180.5	C	0.4	YES	NO	NO
11		DTCA121-5CL	5	4	45±1	20(1.2")	C	NO	YES	NO	4X, 1.2" C-Mount Telecentric Lenseses with Coaxial Illumination Port \| DTCA121 COOLENS®	DTCA121				DTCA121-5CL	5	4	45±1	20(1.2")	11.7	>73	±0.03@F11.7	<0.08	<0.1	243±1	180.5	C	0.4	NO	YES	NO
12		DTCA121-6.6	6.6	3.025	61±1	20(1.2")	C	NO	NO	NO	3.025X, 1.2" C-Mount Telecentric Lenses \| DTCA121 COOLENS®	DTCA121				DTCA121-6.6	6.6	3.025	61±1	20(1.2")	9.4	>96	±0.05@F6.6	0.06	0.005	269±1	206.2	C	0.4	NO	NO	NO
13		DTCA121-6.6CL	6.6	3.025	61±1	20(1.2")	C	NO	YES	NO	3.025X, 1.2" C-Mount Telecentric Lenseses with Coaxial Illumination Port \| DTCA121 COOLENS®	DTCA121				DTCA121-6.6CL	6.6	3.025	61±1	20(1.2")	9.4	>96	±0.05@F6.6	0.06	0.005	269±1	206.2	C	0.5	NO	YES	NO
14		DTCA121-7.3	7.3	2.74	63±1	20(1.2")	C	NO	NO	NO	2.74X, 1.2" C-Mount Telecentric Lenses \| DTCA121 COOLENS®	DTCA121				DTCA121-7.3	7.3	2.74	63±1	20(1.2")	8.5	>105	±0.05@F7.3	0.02	0.03	260±1	188.3	C	0.5	NO	NO	NO
15		DTCA121-7.3CL	7.3	2.74	63±1	20(1.2")	C	NO	YES	NO	2.74X, 1.2" C-Mount Telecentric Lenseses with Coaxial Illumination Port \| DTCA121 COOLENS®	DTCA121				DTCA121-7.3CL	7.3	2.74	63±1	20(1.2")	8.5	>105	±0.05@F7.3	0.02	0.03	260±1	188.3	C	0.5	NO	YES	NO
16		DTCA121-10	10	2	63±1	20(1.2")	C	NO	NO	NO	2.0X, 1.2" C-Mount Telecentric Lenses \| DTCA121 COOLENS®	DTCA121				DTCA121-10	10	2	63±1	20(1.2")	6.6	>142	±0.07@F6.6	<0.2	<0.1	260±1	179	C	0.5	NO	NO	NO
17		DTCA121-10CL	10	2	63±1	20(1.2")	C	NO	YES	NO	2.0X, 1.2" C-Mount Telecentric Lenseses with Coaxial Illumination Port \| DTCA121 COOLENS®	DTCA121				DTCA121-10CL	10	2	63±1	20(1.2")	6.6	>142	±0.07@F6.6	<0.2	<0.1	260±1	179	C	0.5	NO	YES	NO
18		DTCA175-28.2-128-M58-AL	28.2	1	128±2	28.2(1.75")	M58	NO	NO	YES	1.0X, 1.75" M58-Mount Telecentric Lenses Back Flange Length Adjustable\| DTCA175 COOLENS®	DTCA175				DTCA175-28.2-128-M58-AL	28.2	1	128±2	28.2(1.75")	11	>76	±0.45@F8	0.01	0.09	455.5+2	315.5	M58	1	NO	NO	YES
19		DTCA175-28.2C-128-M58-AL	28.2	1	128±2	28.2(1.75")	M58	NO	YES	YES	1.0X, 1.75" M58-Mount Telecentric Lenses with Coaxial Illumination Port, BFL Adjustable \| DTCA175 COOLENS®	DTCA175				DTCA175-28.2C-128-M58-AL	28.2	1	128±2	28.2(1.75")	11	>76	±0.45@F8	0.01	0.09	457.9‡2	317.9	M58	1	NO	YES	YES
20		DTCA175-51-G-M58-AL	51	0.55	220±3	28.2(1.75")	M58	YES	NO	YES	0.55X, 1.75" M58-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable\| DTCA175 COOLENS®	DTCA175				DTCA175-51-G-M58-AL	51	0.55	220±3	28.2(1.75")	8	>106	±1.05@F8	0.05	0.09	425±3	192.7	M58	1.1	YES	NO	YES
21		DTCA175-51C-G-M58-AL	51	0.55	220±3	28.2(1.75")	M58	YES	YES	YES	0.55X, 1.75" M58-Mount Telecentric Lenses with Coaxial Illumination Port, Iris Adjustable, BFL Adjustable \| DTCA175 COOLENS®	DTCA175				DTCA175-51C-G-M58-AL	51	0.55	220±3	28.2(1.75")	8	>106	±1.05@F8	0.05	0.09	430±3	197.9	M58	1.2	YES	YES	YES
22		DTCA175-61.4-G-M42-AL	61.4	0.46	250±3	28.2(1.75")	M42	YES	NO	YES	0.46X, 1.75"M42-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable \| DTCA175 COOLENS®	DTCA175				DTCA175-61.4-G-M42-AL	61.4	0.46	250±3	28.2(1.75")	8	>120	±1.5@F8	0.03	0.21	447±3	184.9	M42	1.2	YES	NO	YES
23		DTCA175-61.4C-G-M42-AL	61.4	0.46	250±3	28.2(1.75")	M42	YES	YES	YES	0.46X, 1.75" M42-Mount Telecentric Lenses with Coaxial Illumination Port, Iris Adjustable, BFL Adjustable \| DTCA175 COOLENS®	DTCA175				DTCA175-61.4C-G-M42-AL	61.4	0.46	250±3	28.2(1.75")	8	>120	±1.5@F8	0.03	0.21	447±3	190.1	M42	1.3	YES	YES	YES
24		DTCA175-15.7-M58-AL	15.7	1.846	71±1	29(1.75")	M58	NO	NO	YES	1.846X, 1.75" M58-Mount Telecentric Lenses BFL Adjustable \| DTCA175 COOLENS®	DTCA175				DTCA175-15.7-M58-AL	15.7	1.846	71±1	29(1.75")	20	>45	±2.5@F20	<0.1	<0.1	395±1	311.9	M58	1.25	NO	NO	YES
25		DTCA185-81-G-M58-AL	81.1	0.37	250±3	30(1.85")	M58	YES	NO	YES	0.37X, 1.85" M58-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable \| DTCA185 COOLENS®	DTCA185				DTCA185-81-G-M58-AL	81.1	0.37	250±3	30(1.85")	8	>114	±2.35@F8	0.08	0.05	462±3	200	M58	2.4	YES	NO	YES
26		DTCA185-81C-G-M58-AL	81.1	0.37	250±3	30(1.85")	M58	YES	YES	YES	0.37X, 1.85" M58-Mount Telecentric Lenses with Coaxial Illumination Port, Iris Adjustable, BFL Adjustable \| DTCA185 COOLENS®	DTCA185				DTCA185-81C-G-M58-AL	81.1	0.37	250±3	30(1.85")	8	>114	±2.35@F8	0.08	0.05	462±3	200	M58	2.5	YES	YES	YES
27		DTCA210-11.8-M58	11.8	2.8	90±1	33(2")	M58	NO	NO	NO	2.8X, 2" M58-Mount Telecentric Lenseses \| DTCA210 COOLENS®	DTCA210				DTCA210-11.8-M58	11.8	2.8	90±1	33(2")	11	>90	±0.05@F11	<0.02	<0.05	403±1	300.9	M58	1.25	NO	NO	NO
28		DTCA210-11.8C-M58	11.8	2.8	90±1	33(2")	M58	NO	YES	NO	2.8X, 2" M58-Mount Telecentric Lenseses With Coaxial Illumination Port \| DTCA210 COOLENS®	DTCA210				DTCA210-11.8C-M58	11.8	2.8	90±1	33(2")	11	>90	±0.05@F11	<0.02	<0.05	403±1	300.9	M58	1.25	NO	YES	NO
29		DTCA210-44.8-M58-AL	44.8	0.737	90±1	33(2")	M58	NO	NO	YES	0.7X, 2" M58-Mount Telecentric Lenses BFL Adjustable \| DTCA210 COOLENS®	DTCA210				DTCA210-44.8-M58-AL	44.8	0.737	90±1	33(2")	7.8	>90	±0.05@F7.8	0.1	NA	298.2±1	194.2	M58	0.8	NO	NO	YES
30		DTCA210-215-M42-AL	215	0.1536	220±3	33(2")	M42	NO	NO	YES	0.1536X, 2" M42-Mount Telecentric Lenses BFL Adjustable \| DTCA210 COOLENS®	DTCA210				DTCA210-215-M42-AL	215	0.1536	220±3	33(2")	10	>90	±13.6@F8	<0.1	<0.1	601±3	369	M42	8.7	NO	NO	YES
31		DTCA35F-11-G-M58-AL	11	4	60±1	44	M58	YES	NO	YES	4.0X, 35mm Full Frame M58-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable \| DTCA35F COOLENS®	DTCA35F				DTCA35F-11-G-M58-AL	11	4	60±1	44	11-32	90-32	0.06-0.16	0.02	0.02	425±1	353.2	M58	1.7	YES	NO	YES
32		DTCA35F-11C-G-M58-ALV2	11	4	60±1	44	M58	YES	YES	YES	4.0X, 35mm Full Frame M58-Mount Telecentric Lenses with Coaxial Illumination Port, Iris Adjustable, BFL Adjustable \| DTCA35F COOLENS®	DTCA35F				DTCA35F-11C-G-M58-ALV2	11	4	60±1	44	11-32	90-32	0.06-0.16	0.02	0.02	425±1	365.4	M58	3.5	YES	YES	YES
33		DTCA35F-94-M58-AL	94	0.462	378±4	43.4	M58	NO	NO	YES	0.462X, 35mm Full Frame M58-Mount Telecentric Lenses BFL Adjustable \| DTCA35F COOLENS®	DTCA35F				DTCA35F-94-M58-AL	94	0.462	378±4	43.4	8	>115	±1.5@F8.0	<0.1	<0.1	847±4	456.9	M58	3.7	NO	NO	YES
34		DTCA35F-94C-M58-AL	94	0.462	378±4	43.4	M58	NO	YES	YES	0.462X, 35mm Full Frame M58-Mount Telecentric Lenses with Coaxial Illumination Port, BFL Adjustable \| DTCA35F COOLENS®	DTCA35F				DTCA35F-94C-M58-AL	94	0.462	378±4	43.4	8	>115	±1.5@F8.0	<0.1	<0.1	847±4	456.9	M58	3.7	NO	YES	YES
35		DTCA35F-82-M58-AL	82	0.53	338±5	43.4	M58	NO	NO	YES	0.530X, 35mm Full Frame M58-Mount Telecentric Lenses BFL Adjustable \| DTCA35F COOLENS®	DTCA35F				DTCA35F-82-M58-AL	82	0.53	338±5	43.4	10	>92	±1.4@F10	<0.1	<0.1	814±5	464.4	M58	3.8	NO	NO	YES
36		DTCA35F-82C-M58-AL	82	0.53	338±5	43.4	M58	NO	YES	YES	0.530X, 35mm Full Frame M58-Mount Telecentric Lenses with Coaxial Illumination Port, BFL Adjustable \| DTCA35F COOLENS®	DTCA35F				DTCA35F-82C-M58-AL	82	0.53	338±5	43.4	10	>92	±1.4@F10	<0.1	<0.1	814±5	464.4	M58	3.8	NO	YES	YES
37		DTCA16K-62-AL	62	1	102±2	62	M72	NO	NO	YES	1.0X, 16K M72 Bi-Telecentric Lenses BFL Adjustable \| DTCA16K COOLENS®	DTCA16K				DTCA16K-62-AL	62	1	102±2	62	7	>110	±0.3@F7.0	<0.1	<0.62	400±2	285.9	M72	3.1	NO	NO	YES
38		DTCA16K-72.7-AL	72.7	0.853	125±3	62	M72	NO	NO	YES	0.853X, 16K M72 Bi-Telecentric Lenses BFL Adjustable \| DTCA16K COOLENS®	DTCA16K				DTCA16K-72.7-AL	72.7	0.853	125±3	62	6	>135	±0.3@F6.0	<0.1	<0.3	650±3	513	M72	5.7	NO	NO	YES
39		DTCA16K-88-AL	88	0.705	125±3	62	M72	NO	NO	YES	0.705X, 16K M72 Bi-Telecentric Lenses BFL Adjustable \| DTCA16K COOLENS®	DTCA16K				DTCA16K-88-AL	88	0.705	125±3	62	7	>165	±0.6@F7.0	<0.1	<0.3	601±3	464.4	M72	5.2	NO	NO	YES
40		DTCA23K-63-M95-AL	63	1.3	145±3	82	M95	NO	NO	YES	1.3X, 23K M95 Telecentric Lenses BFL Adjustable \| DTCA23K COOLENS®	DTCA23K				DTCA23K-63-M95-AL	63	1.3	145±3	82	7.5	>124	±0.18@F7.5	0.03	0.04	672±3	513.5	M95	5.5	NO	NO	YES
41		DTCA23K-93.7-M95-AL	93.7	0.875	140±3	82	M95	NO	NO	YES	0.875X, 23K M95 Telecentric Lenses BFL Adjustable \| DTCA23K COOLENS®	DTCA23K				DTCA23K-93.7-M95-AL	93.7	0.875	140±3	82	9.5	>97	±0.5@F9.5	0.03	0.08	620±3	468.1	M95	6	NO	NO	YES
42		DTCA24K-44-M95-AL	44	2	120±3	88	M95	NO	NO	YES	2.0X, 24K M95 Bi-Telecentric Lenses BFL Adjustable \| DTCA24K COOLENS®	DTCA24K				DTCA24K-44-M95-AL	44	2	120±3	88	4.8	>62	±0.05@F4.8	0.045	0.1	593±3	463	M95	5	NO	NO	YES
43		DTCA24K-62-M95-AL	62	1.419	123±3	88	M95	NO	NO	YES	1.419X, 24K M95 Bi-Telecentric Lenses BFL Adjustable \| DTCA24K COOLENS®	DTCA24K				DTCA24K-62-M95-AL	62	1.419	123±3	88	7	>115	±0.1@F7.0	<0.1	<0.1	601±3	466.3	M95	5.5	NO	NO	YES
44		DTCA24K-75-M95-AL	75	1.173	152±3	88	M95	NO	NO	YES	1.173X, 24K M95 Bi-Telecentric Lenses BFL Adjustable \| DTCA24K COOLENS®	DTCA24K				DTCA24K-75-M95-AL	75	1.173	152±3	88	7	>118	±0.2@F7.0	<0.01	<0.05	650±3	486	M95	5.6	NO	NO	YES
45		DTCA24K-79-M95-AL	79.2	1.11	150±3	88	M95	NO	NO	YES	1.11X, 24K M95 Bi-Telecentric Lenses BFL Adjustable \| DTCA24K COOLENS®	DTCA24K				DTCA24K-79-M95-AL	79.2	1.11	150±3	88	7	>100	±0.2@F7.0	<0.01	<0.2	641±3	478.5	M95	5.6	NO	NO	YES
46		DTCA24K-88-M95-AL	88	1	162±3	88	M95	NO	NO	YES	1.0X, 24K M95 Bi-Telecentric Lenses BFL Adjustable \| DTCA24K COOLENS®	DTCA24K				DTCA24K-88-M95-AL	88	1	162±3	88	8	>90	±0.3@F8.0	<0.1	<0.1	627±3	453.2	M95	6	NO	NO	YES
47		DTCA24K-92-M95-AL	91.6	0.96	150±3	88	M95	NO	NO	YES	0.96X, 24K M95 Bi-Telecentric Lenses BFL Adjustable \| DTCA24K COOLENS®	DTCA24K				DTCA24K-92-M95-AL	91.6	0.96	150±3	88	8	>90	±0.3@F8.0	<0.1	<0.1	621±3	458.5	M95	6	NO	NO	YES
