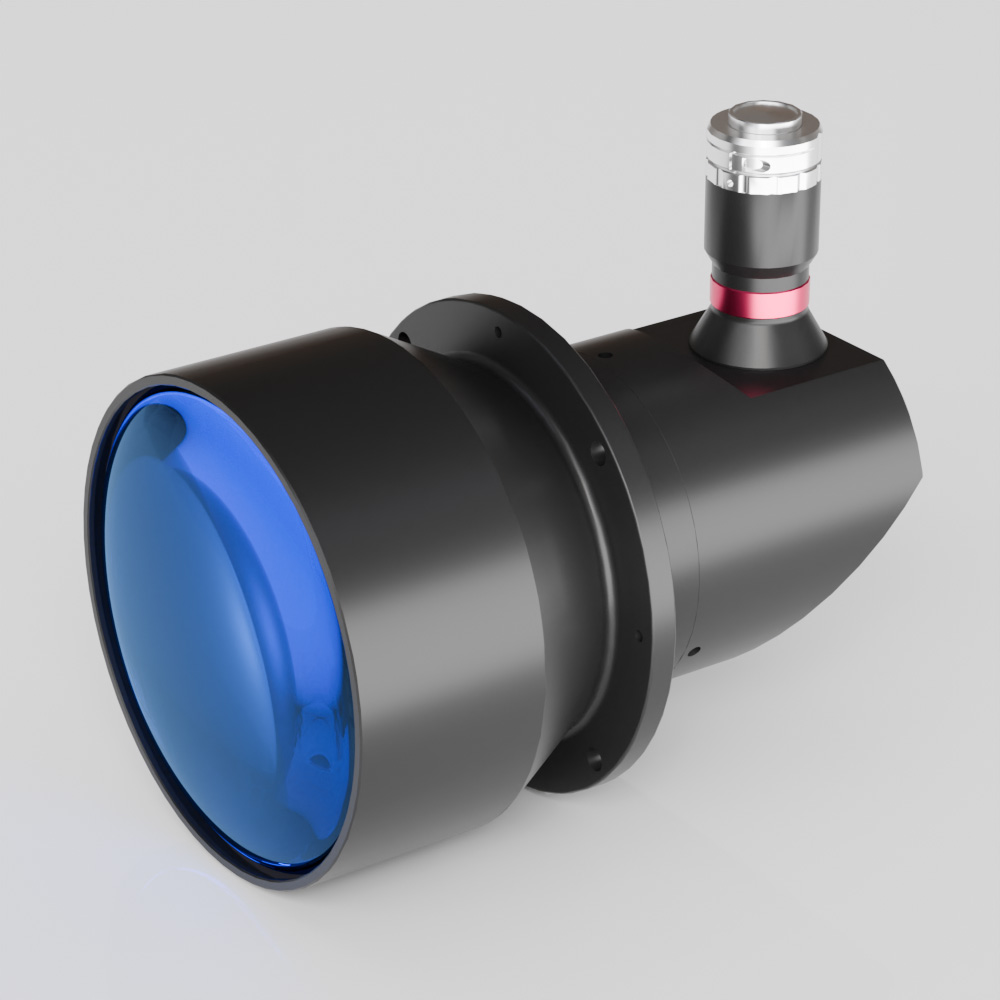

16.6(1″)mm 0.1221X 90° Matrix Bi-Telecentric Lenses | DTCM110-136H-T90-AL COOLENS®

Model NO.    :

DTCM110-136H-T90-AL

Image Circle: 16.6(1″)mm
Magnification: 0.1221X
FOV: 136mm
WD: 682±5mm
NA: 0.00938
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM110-136H-T90-AL Object Field of View(Φmm) 136
Image Circle Diameter (Φmm) 16.6(1") Best Aperture(f/#) 6.5
Magnification(x) 0.1221 MTF30 (lp/mm) 140
Working Distance(mm) 682±5 Depth of Field(mm) ±17.5@F6.5
NA 0.00938 Distortion Typical(% max) ≤0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) ≤0.1
Length of I/O(mm) 1048.2±5
Mechanical Specifications
Mount C
Length (mm) 252.6

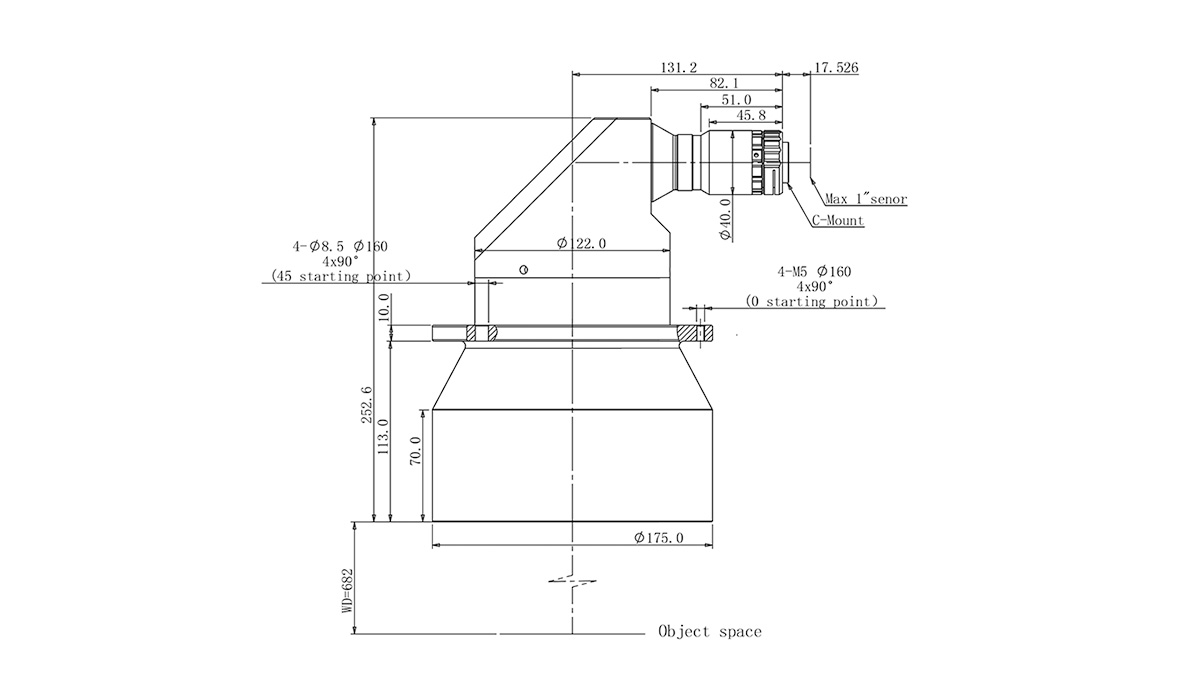

Dimensions
